Release Info
| Catalog ID | ALG-DZ |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | November 1992 |
| Publisher | Camerica |
| Developer | Codemasters |
| Players | 1 |
| Peripherals | NES Controller,Aladdin Deck Enhancer |

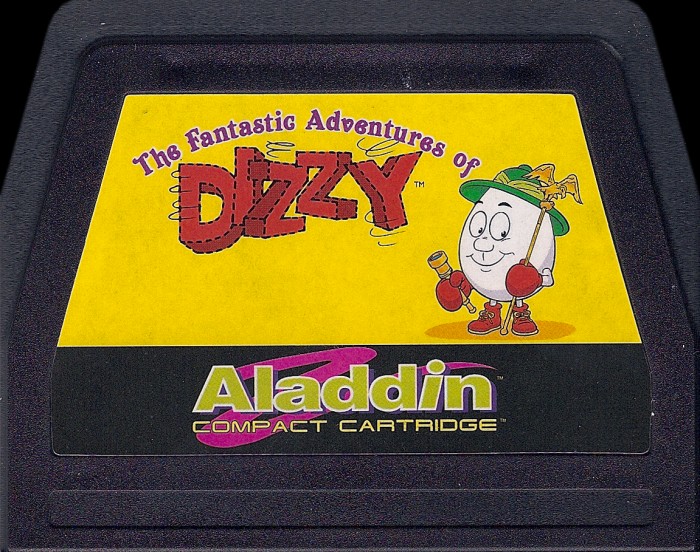

Cart Properties
| Cart Producer | Camerica |
|---|---|
| Color | Black |
| Form Factor | Aladdin Cart |

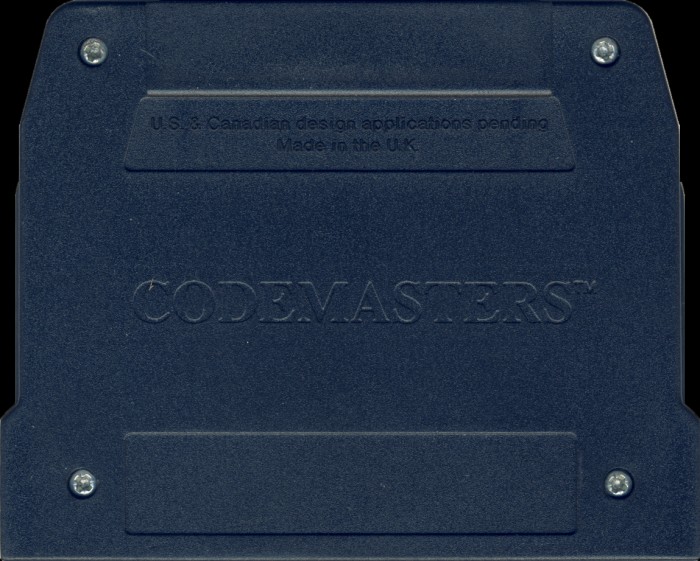

| Embossed Text | U.S. & Canadian design applications pending. Made in the U.K. |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties
| Name | ALGNV1-1 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 9315 |
| Est First Run | April 1993 |
| PCB Class | CAMERICA-ALGN |
| iNES Mapper | 71 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | PIC16C54 |
| Hardware | CCU_V2.00 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | FANTASTIC ADV OF DIZZY DZ7A47 | 256 KB | F732C8FD | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Samsung | KM23C2001 | Mask ROM 256 KB | DIP-32 | DZ7A47 | |||
| Samsung | KM6264BLS-8 | SRAM 8 KB | SDIP-28 | 210 | 9210 | ||
| Microchip | PIC16C54-HS/P | PIC16C54 | DIP-18 | 9315 CFA | 9315 | ||
| Code Masters | CF30288 | Aladdin MMC | DIP-28 | 9241 N X | 9241 |
