Release Info
| Catalog ID | CAM-DZ |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | April 1991 |
| Publisher | Camerica |
| Developer | Codemasters |
| Players | 1 |
| Peripherals | NES Controller |

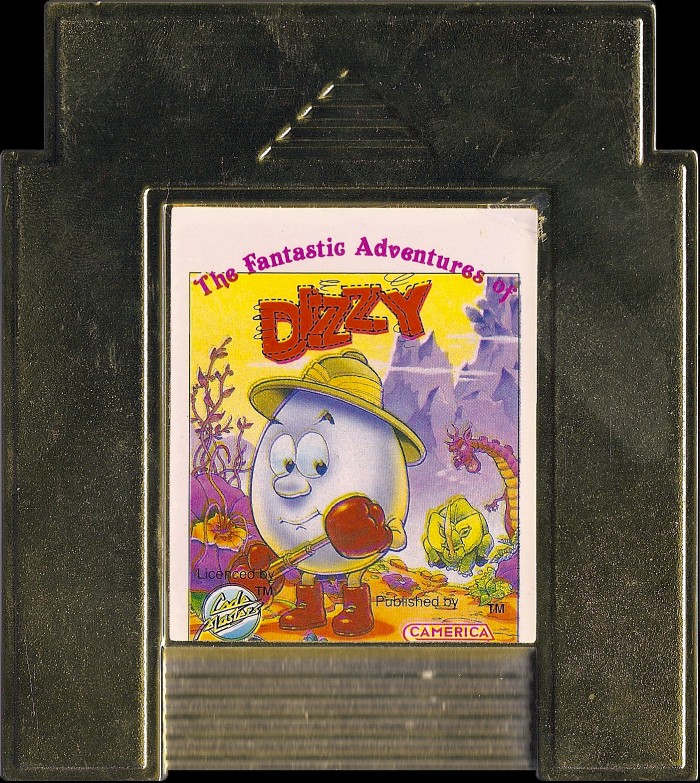

Cart Properties
| Cart Producer | Camerica |
|---|---|
| Color | Gold |
| Form Factor | NES Cart |

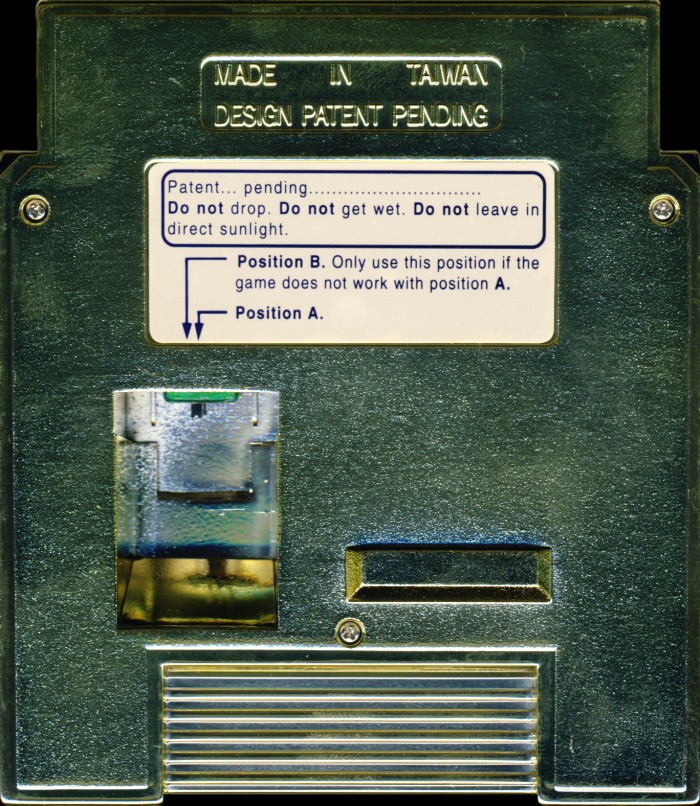

| Embossed Text | Made in Taiwan Design Patent Pending |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties
| Name | BIC-48 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 9142 |
| Est First Run | October 1991 |
| PCB Class | CAMERICA-BF9093 |
| iNES Mapper | 71 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | CIC Stun |
| Hardware | BF9093 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | COBIC 7404-DZ | 256 KB | 38FBCC85 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | Hyundai | BF9093 | Camerica BF9093 | DIP-20 | 9142 T | 9142 | |
| U2 | Hyundai | HY232000 | Mask ROM 256 KB | DIP-32 | 140 CJIKDSA | 9140 | |
| U3 | Hyundai | HM6265L-90 | SRAM 8 KB | DIP-28 | 9105 A | 9105 |
