Release Info
| Catalog ID | NES-BB-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | December 1992 |
| Publisher | Electro Brain |
| Developer | Loriciel |
| Players | 2 |
| Peripherals | NES Controller |
Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |

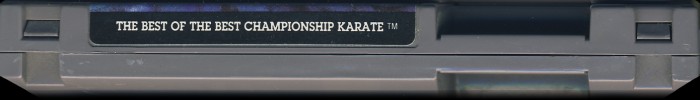

| Embossed Text | Nintendo® Pat. Pend. Made in Japan |

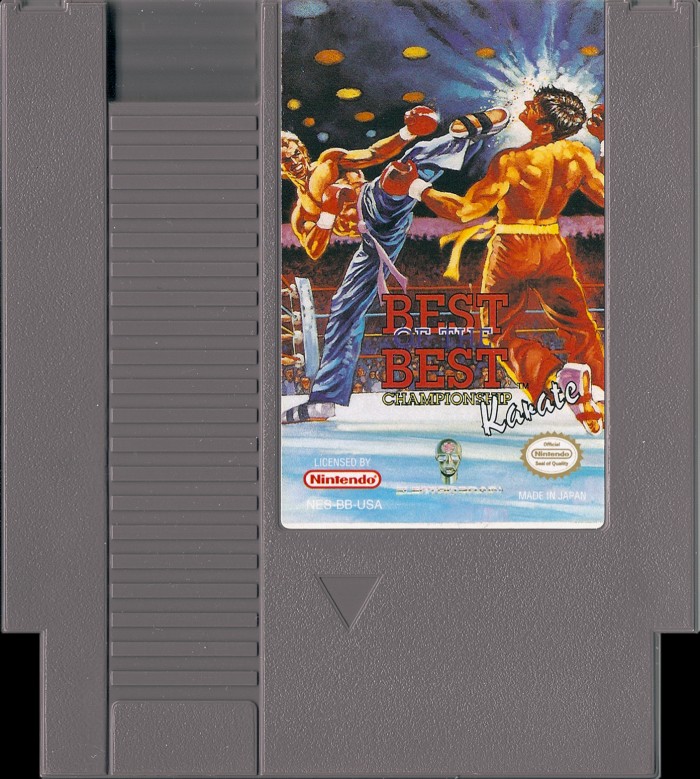

| Front Label ID | NES-BB-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 07 |
PCB Properties
| Name | NES-UOROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9243 |
| Est First Run | October 1992 |
| PCB Class | NES-UOROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-BB-0 PRG | 256 KB | A6A725B8 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Toshiba | TC532003AP J785 | Mask ROM 256 KB | DIP-32 | 9241 EAI | 9241 | |
| U2 CHR RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9226 EJ | 9226 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9232 1 BB | 9232 | |
| U4 74HC161 | GoldStar | GD74HC161 | 74-161 Series | DIP-16 | 9039 | 9039 | |
| U5 74HC32 | GoldStar | GD74HC32 | 74-32 Series | DIP-14 | 9243 | 9243 |
