Release Info
| Catalog ID | NES-J5-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | March 1991 |
| Publisher | Taito |
| Developer | Software Creations |
| Players | 1 |
| Peripherals | NES Controller |

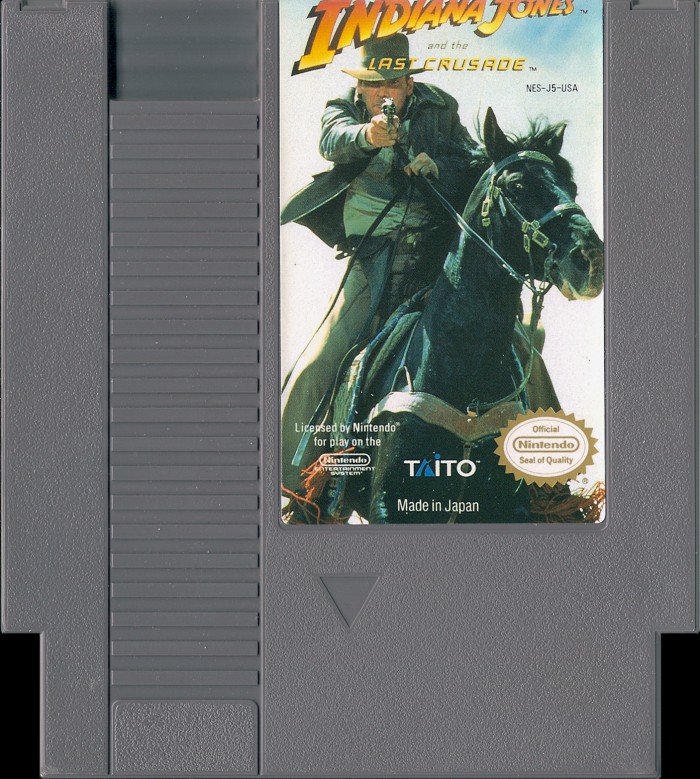

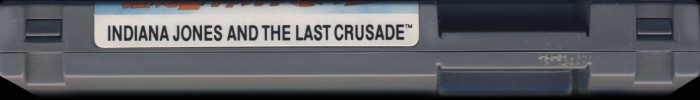

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-J5-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 19 |
PCB Properties
| Name | NES-SGROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9101 |
| Est First Run | January 1991 |
| PCB Class | NES-SGROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-J5-0 PRG | 256 KB | 8BCA5146 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP232048E 0062 | Mask ROM 256 KB | DIP-32 | 1AB 71 | 9101 | |
| U2 CHR RAM | Fujitsu | MB8464-15L | SRAM 8 KB | DIP-28 | 9042 KT72 | 9042 | BA L |
| U3 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 9035 B3034 | 9035 | |
| U4 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9043 5 AB | 9043 |
