Release Info
| Catalog ID | NES-IJ-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | December 1988 |
| Publisher | Mindscape |
| Developer | Tengen |
| Players | 1 |
| Peripherals | NES Controller |

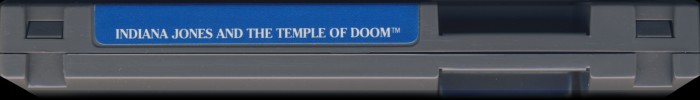

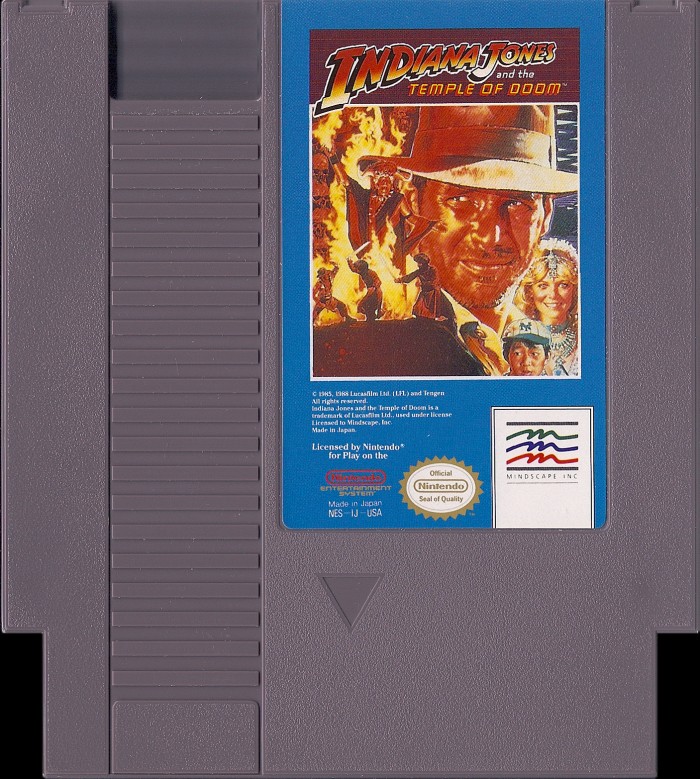

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-IJ-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

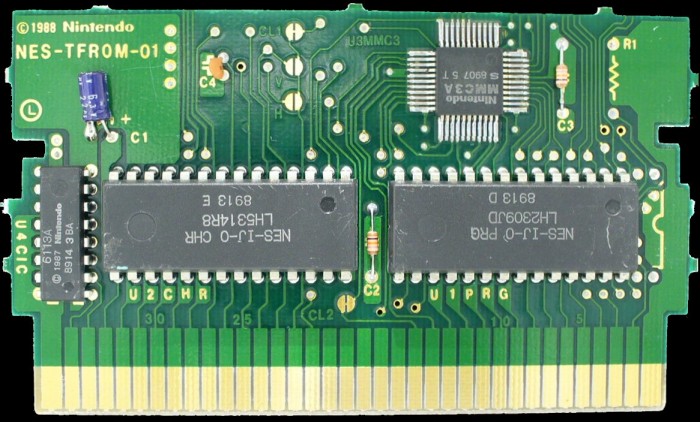

PCB Properties
| Name | NES-TFROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8852 - 8924 (3) |
| Est First Run | December 1988 |
| PCB Class | NES-TFROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113A |
| Hardware | MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-IJ-0 PRG | 128 KB | 5CEB1256 | 2 |
| CHR0 | NES-IJ-0 CHR | 64 KB | 9F28C02F | 4 |
| N/A | ROMs Combined | 192 KB | A0C31A57 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2309 JD | Mask ROM 128 KB | DIP-28 | 8913 D | 8913 | |
| U2 CHR | Sharp | LH5314 R8 | Mask ROM 64 KB | DIP-28 | 8913 E | 8913 | |
| U3 MMC3 | Sharp | MMC3A | Nintendo MMC3 | TQFP-44 | 8907 5 T | 8907 | |
| U4 CIC | Sharp | 6113A | Nintendo CIC | DIP-16 | 8914 3 BA | 8914 |
