Release Info
| Catalog ID | NES-9M-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | 1990 |
| Publisher | The Software Toolworks |
| Developer | The Software Toolworks |
| Players | 1 |
| Peripherals | NES Controller,Miracle Piano |

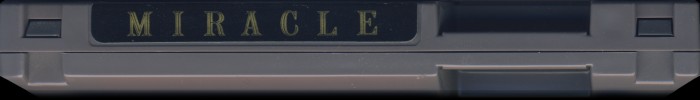

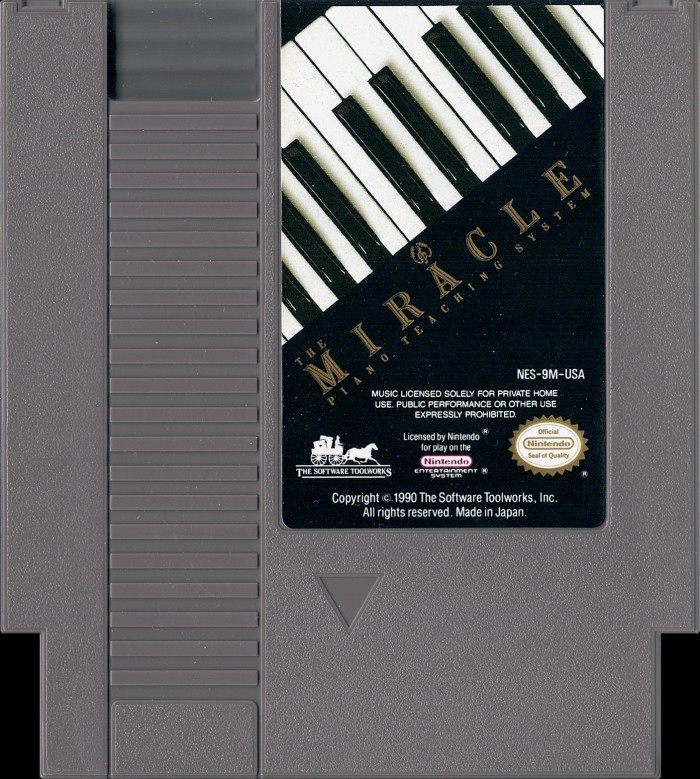

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-9M-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 01 |

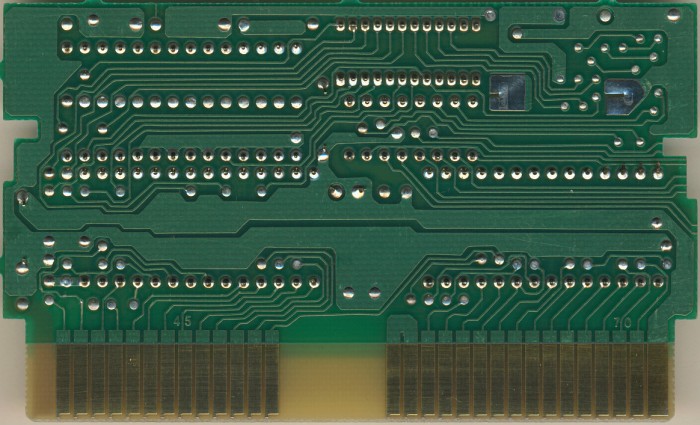

PCB Properties
| Name | NES-SJROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9044 |
| Est First Run | November 1990 |
| PCB Class | NES-SJROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-9M-0 PRG | 256 KB | 3349BA0E | 1 |
| CHR0 | NES-9M-0 CHR | 64 KB | DD3C40E8 | 1 |
| N/A | ROMs Combined | 320 KB | 92C138E4 | 1 |

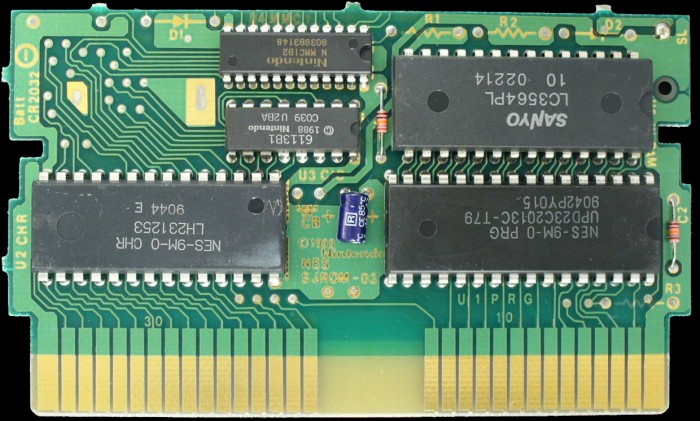

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013C T79 | Mask ROM 256 KB | DIP-32 | 9042 PY015 | 9042 | |
| U2 CHR | Sharp | LH2312 53 | Mask ROM 64 KB | DIP-28 | 9044 E | 9044 | |
| U3 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 039 C | 9039 | |
| U4 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 9039 B3148 | 9039 | |
| U5 W-RAM | Sanyo | LC3564PL-10 | SRAM 8 KB | DIP-28 | 02 214 | 9005 |
