Release Info
| Catalog ID | SFL-MY |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | August 10, 1988 |
| Publisher | Sofel |
| Developer | Sofel |
| Players | 1 |
| Peripherals | Famicom Controller |

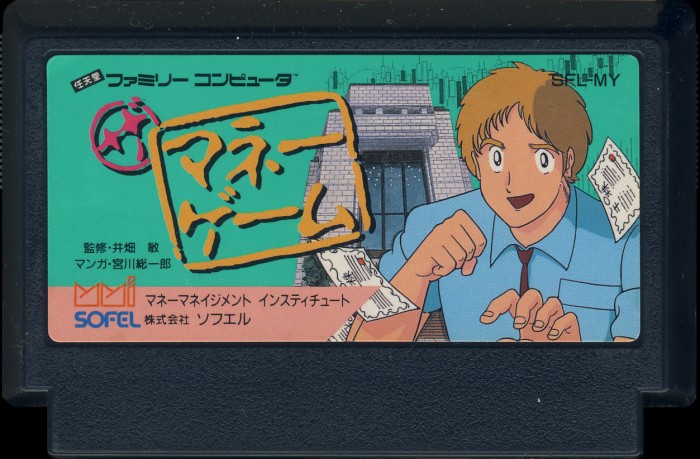

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SFL-MY |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

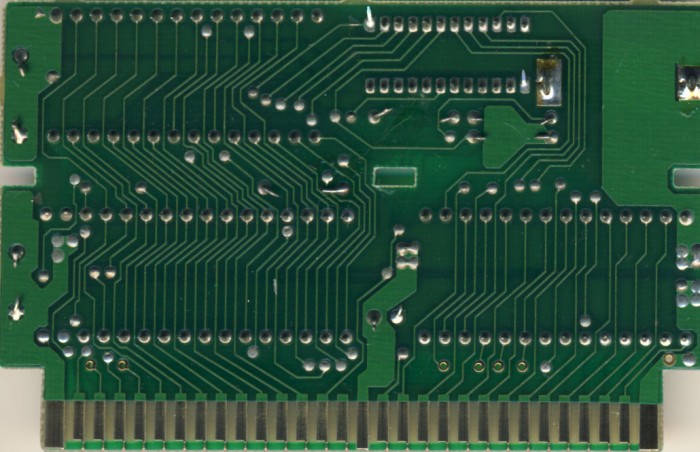

PCB Properties
| Name | HVC-SJROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8828 |
| Est First Run | July 1988 |
| PCB Class | HVC-SJROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SFL-MY-0 PRG | 128 KB | 8CE9C87B | 1 |
| CHR0 | SFL-MY-0 CHR | 32 KB | 0F61A72A | 1 |
| N/A | ROMs Combined | 160 KB | CFD4A281 | 1 |

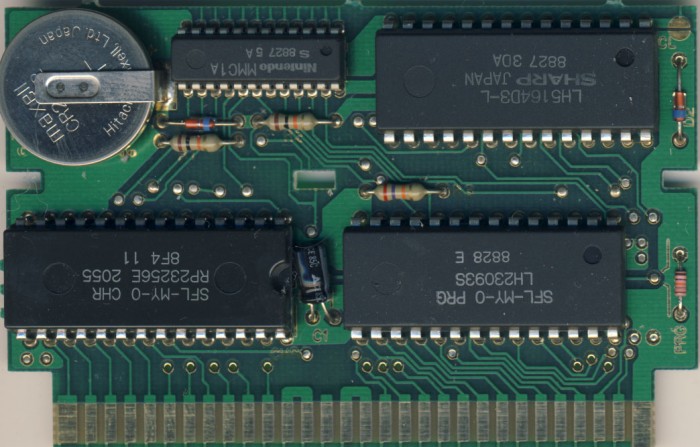

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Sharp | LH2309 3S | Mask ROM 128 KB | DIP-28 | 8828 E | 8828 | |
| CHR | Ricoh | RP23256E 2055 | Mask ROM 32 KB | DIP-28 | 8F4 11 | 8826 | |
| MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8827 5 A | 8827 | |
| W-RAM | Sharp | LH5164D3-L | SRAM 8 KB | DIP-28 | 8827 3 DA | 8827 |
