Release Info
| Catalog ID |
CTS-HW |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
March 27, 1992 |
| Publisher |
Character Soft |
| Developer |
Pax Softnica |
| Players |
2 |
| Peripherals |
Famicom Controller |

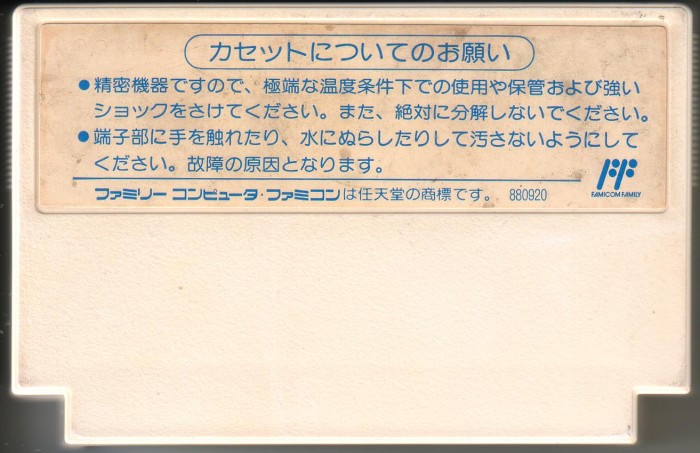

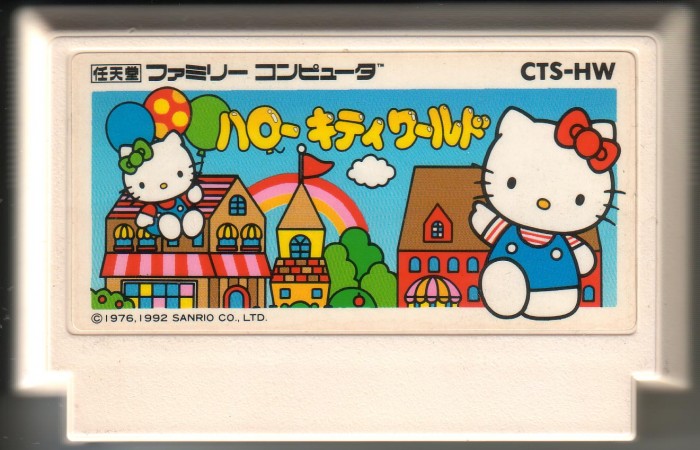

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
White |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
CTS-HW |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
00 |
PCB Properties
| Name |
HVC-UNROM-10 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
9206 |
| Est First Run |
February 1992 |
| PCB Class |
HVC-UNROM |
| iNES Mapper |
2 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
CTS-HW-0 PRG |
128 KB |
67D5C3F9 |
0 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG |
Ricoh |
RP231027D
6677
|
Mask ROM
128 KB
|
DIP-28 |
2BC
43
|
9206 |
|
| U2 CHR RAM |
Motorola |
MCM6064P12
|
SRAM
8 KB
|
DIP-28 |
9201
HCK
|
9201 |
|
| U3 HC161 |
Texas Instruments |
SN74HC161N
|
74-161 Series
|
DIP-16 |
139
ER
|
9139 |
|
| U4 HC32 |
Toshiba |
74HC32AP
|
74-32 Series
|
DIP-14 |
9131
H
|
9131 |
|
