Release Info
| Catalog ID | CTS-HL |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 11, 1992 |
| Publisher | Character Soft |
| Developer | Shimada Kikaku |
| Players | 1 |
| Peripherals | Famicom Controller |

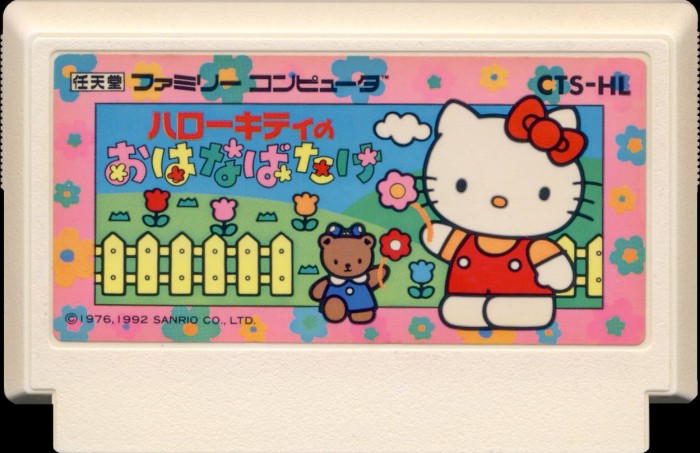

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | CTS-HL |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 17 |
PCB Properties

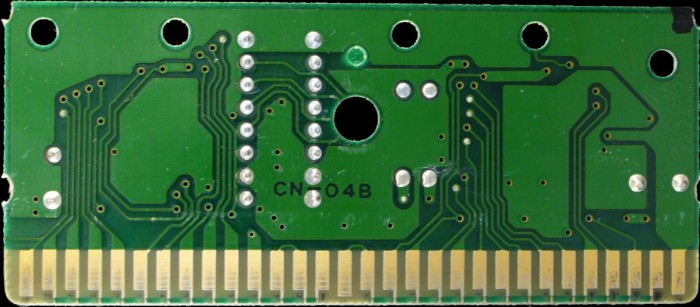

| Name | CN-04B |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Mfg17 |
| Mfg Range | 9236 |
| Est First Run | September 1992 |
| PCB Class | HVC-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | 62A94F97 | 1 |
| CHR0 | Not Present | 32 KB | EE82486B | 1 |
| N/A | ROMs Combined | 64 KB | 26BB1C8C | 1 |

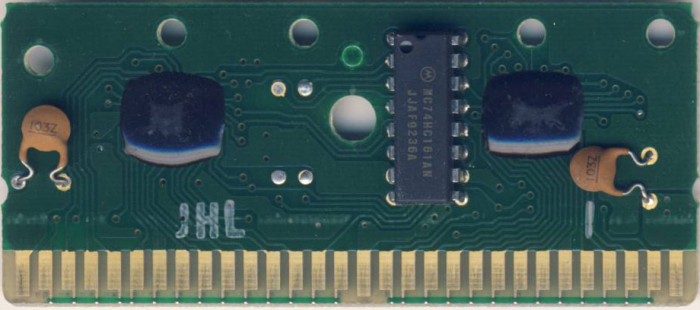

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | _UnkMfg17 | JHL | Chip-on-Board PCB | PCB | I | ||
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| Motorola | MC74HC161AN | 74-161 Series | DIP-16 | 9236 JJAF | 9236 |
