Release Info
| Catalog ID | KDS-GN |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | May 12, 1989 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | Famicom Controller |

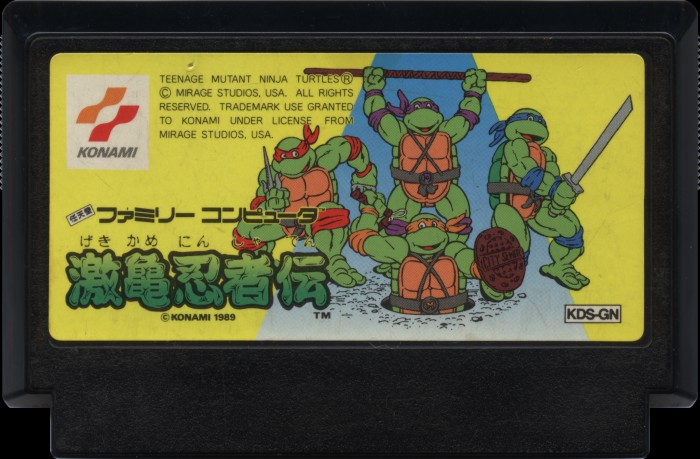

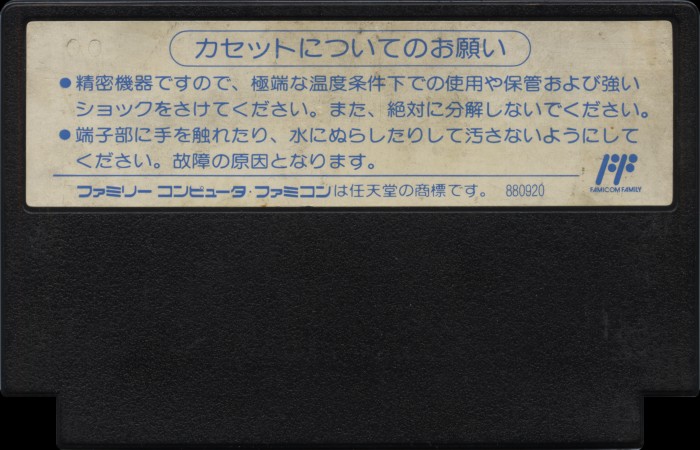

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | KDS-GN |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

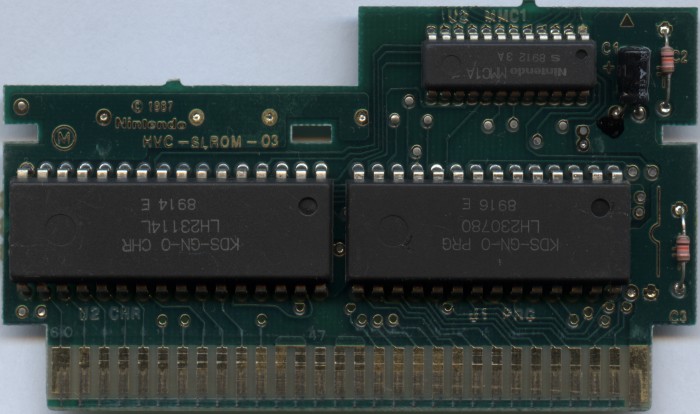

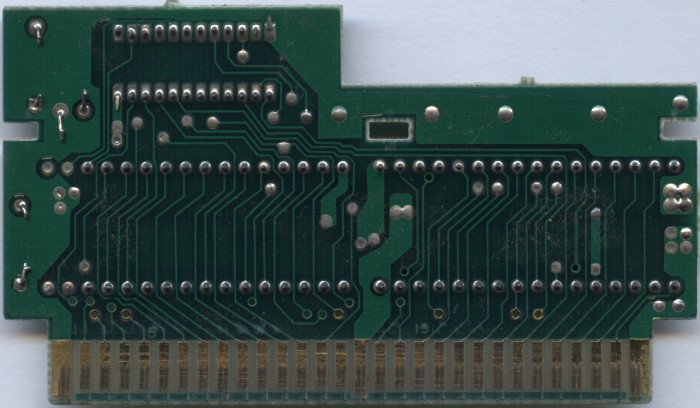

PCB Properties
| Name | HVC-SLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8916 |
| Est First Run | April 1989 |
| PCB Class | HVC-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KDS-GN-0 PRG | 128 KB | FF1412EA | 0 |
| CHR0 | KDS-GN-0 CHR | 128 KB | 6901DCEB | 0 |
| N/A | ROMs Combined | 256 KB | 64A02715 | 0 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2307 80 | Mask ROM 128 KB | DIP-28 | 8916 E | 8916 | |
| U2 CHR | Sharp | LH2311 4L | Mask ROM 128 KB | DIP-32 | 8914 E | 8914 | |
| U3 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8912 3A | 8912 |
