Release Info
| Catalog ID |
IF-15 |
| Region |
Japan (NTSC) |
| Class |
Licensed » 3rd-Party |
| Release Date |
November 17, 1989 |
| Publisher |
Irem |
| Developer |
Tamtex |
| Players |
1 |
| Peripherals |
Famicom Controller |

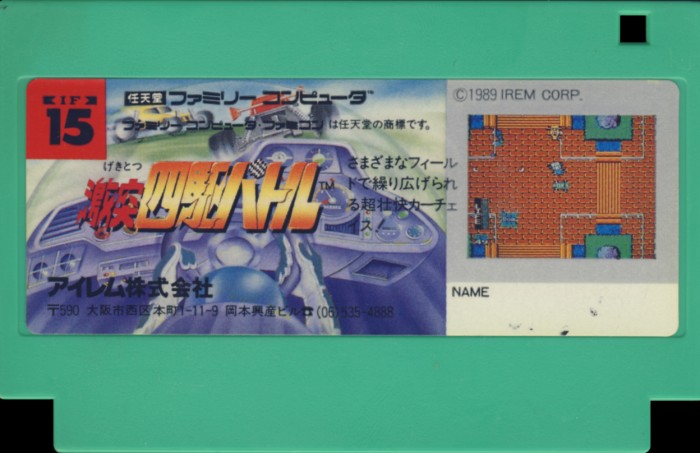

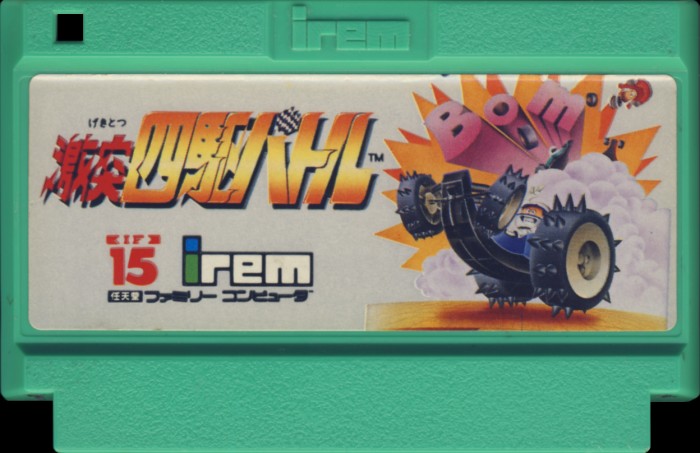

Cart Properties
| Cart Producer |
Irem |
| Color |
Green |
| Form Factor |
Original wo/ LED |
| Embossed Text |
|
| Front Label ID |
IF-15 |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
|
PCB Properties
| Name |
FC-00-02 |
| PCB Producer |
Irem |
| Manufacturer |
Not Specified |
| Mfg Range |
8938 |
| Est First Run |
September 1989 |
| PCB Class |
IREM-UNROM |
| iNES Mapper |
2 |
| Mirroring |
Horizontal |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
IREM-IF-14 |
128 KB |
04109355 |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
|
Sharp |
LH2307
DB
|
Mask ROM
128 KB
|
DIP-28 |
8938
E
|
8938 |
|
|
Toshiba |
TC5565APL-15
|
SRAM
8 KB
|
DIP-28 |
8934
HCK
|
8934 |
|
|
Motorola |
MC74HC161
|
74-161 Series
|
DIP-16 |
8813
N A
|
8813 |
|
|
Motorola |
MC74HC32AN
|
74-32 Series
|
DIP-14 |
8938
JJAJ
|
8938 |
|
Additional Images
PCB Images
