Release Info
| Catalog ID | CAP-VP |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | February 23, 1990 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 1 |
| Peripherals | Famicom Controller |

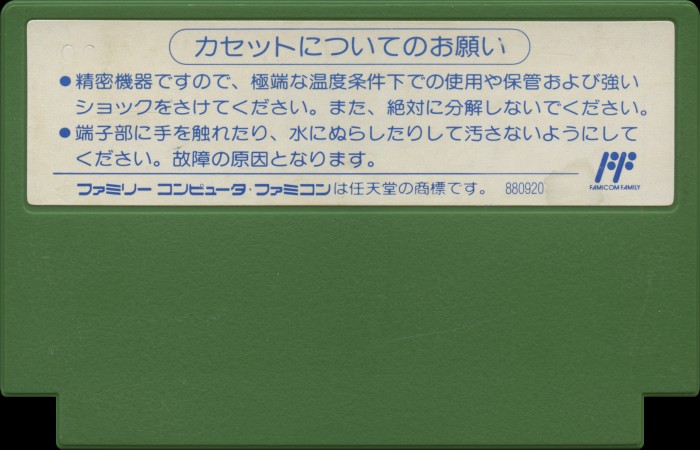

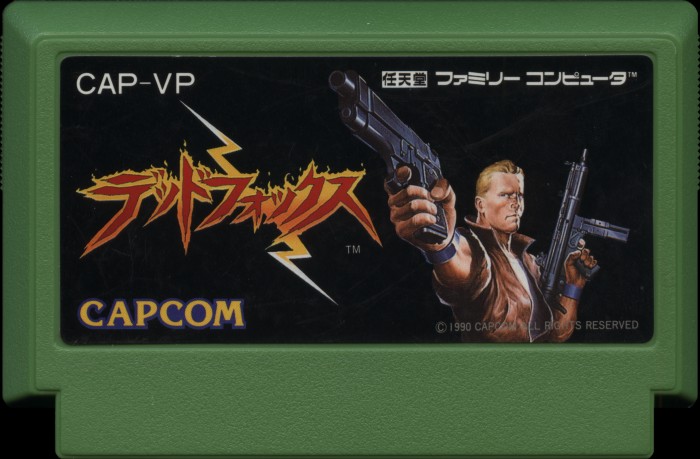

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Olive |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | CAP-VP |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

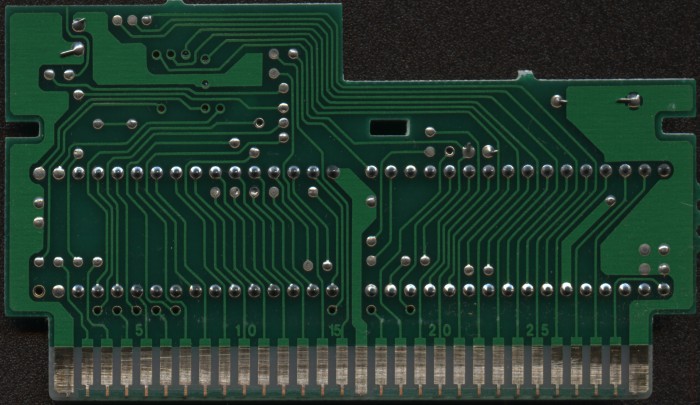

PCB Properties
| Name | HVC-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8950 |
| Est First Run | December 1989 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | CAP-VP-0 PRG | 128 KB | 5EB21035 | 0 |
| CHR0 | CAP-VP-0 CHR | 128 KB | 11B42818 | 0 |
| N/A | ROMs Combined | 256 KB | 2E1E7FD8 | 0 |

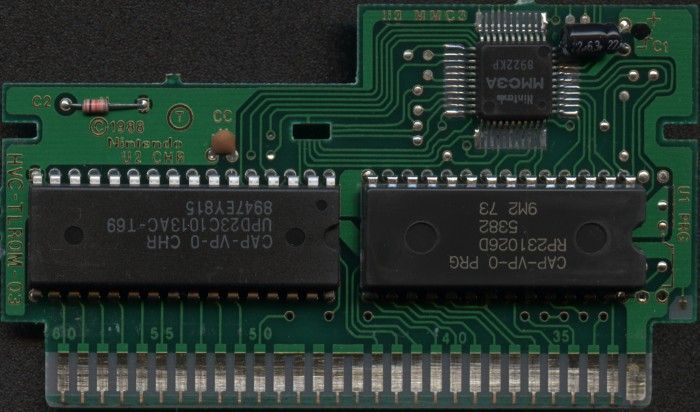

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5382 | Mask ROM 128 KB | DIP-28 | 9M2 73 | 8950 | |
| U2 CHR | NEC | UPD23C1013AC T69 | Mask ROM 128 KB | DIP-32 | 8947 EY815 | 8947 | |
| U3 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8922 KP | 8922 |
