Release Info
| Catalog ID | VFR-L1-07 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | February 22, 1991 |
| Publisher | Victor |
| Developer | |
| Players | 1 |
| Peripherals | Famicom Controller |

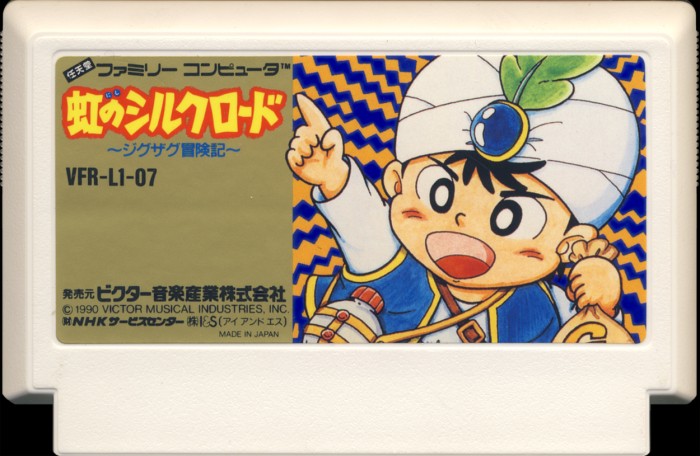

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | VFR-L1-07 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |
PCB Properties
| Name | HVC-TKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9115 |
| Est First Run | April 1991 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | VFR-L1-0 PRG | 256 KB | E8BBE2BE | 1 |
| CHR0 | VFR-L1-0 CHR | 128 KB | 390E2072 | 1 |
| N/A | ROMs Combined | 384 KB | 5337F73C | 1 |

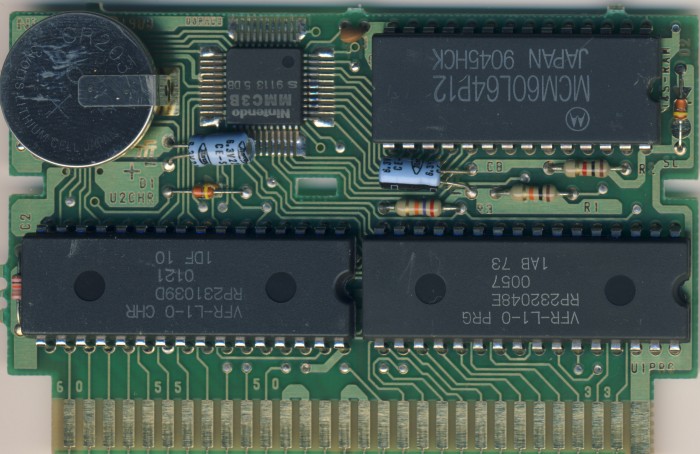

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP232048E 0057 | Mask ROM 256 KB | DIP-32 | 1AB 73 | 9101 | |
| U2 CHR | Ricoh | RP231039D 0121 | Mask ROM 128 KB | DIP-32 | 1DF 10 | 9115 | |
| U3 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9113 5 DB | 9113 | |
| U4 W-RAM | Motorola | MCM60L64P12 | SRAM 8 KB | DIP-28 | 9045 HCK | 9045 |
