Release Info
| Catalog ID | HAL-4J |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | August 30, 1991 |
| Publisher | HAL Laboratory |
| Developer | HAL Laboratory |
| Players | 1 |
| Peripherals | Famicom Controller |

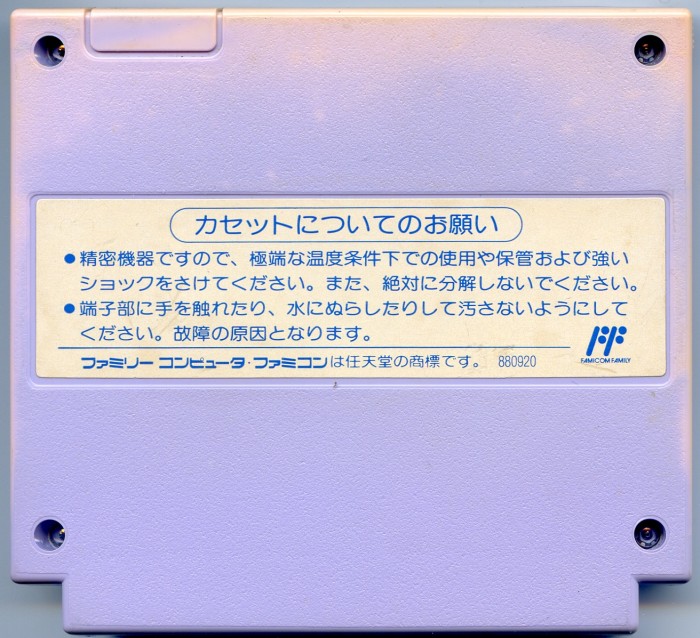

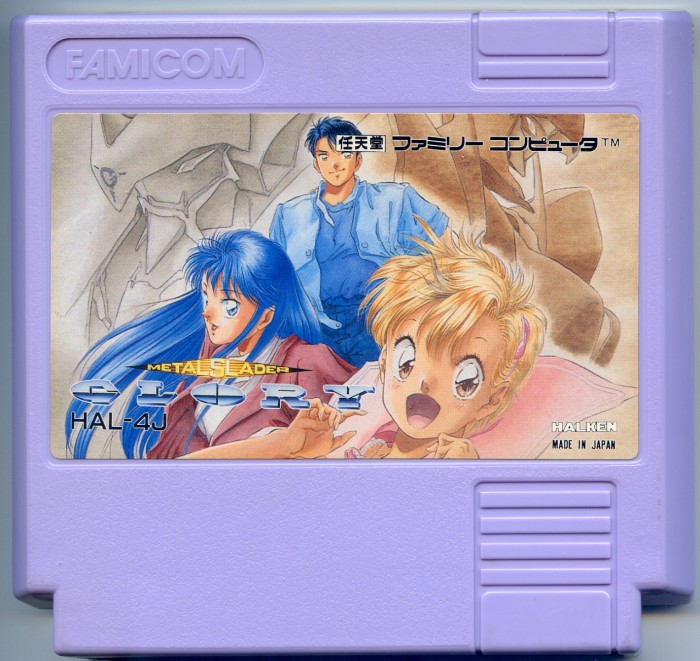

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Purple |
| Form Factor | Large w/ Famicom Logo |
| Embossed Text | |
| Front Label ID | HAL-4J |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

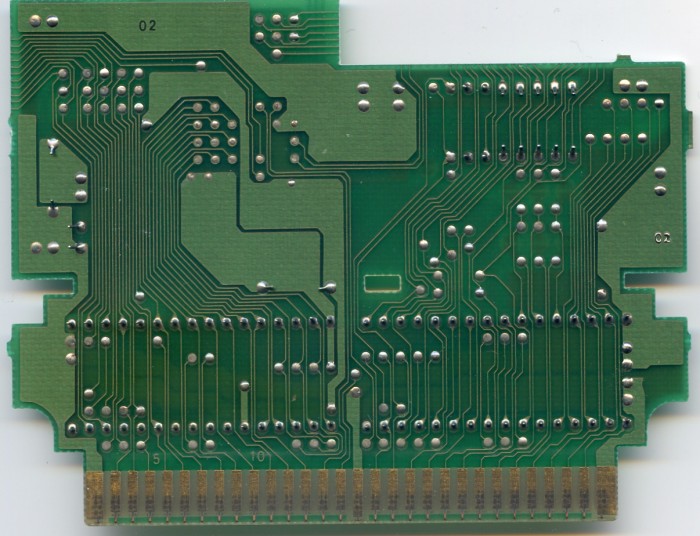

PCB Properties
| Name | HVC-ELROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9129 |
| Est First Run | July 1991 |
| PCB Class | HVC-ELROM |
| iNES Mapper | 5 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC5 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HAL-4J-0 PRG | 512 KB | CD9ACF43 | 1 |
| CHR0 | HAL-4J-0 CHR | 512 KB | F596DF2A | 1 |
| N/A | ROMs Combined | 1024 KB | B4735FAC | 1 |

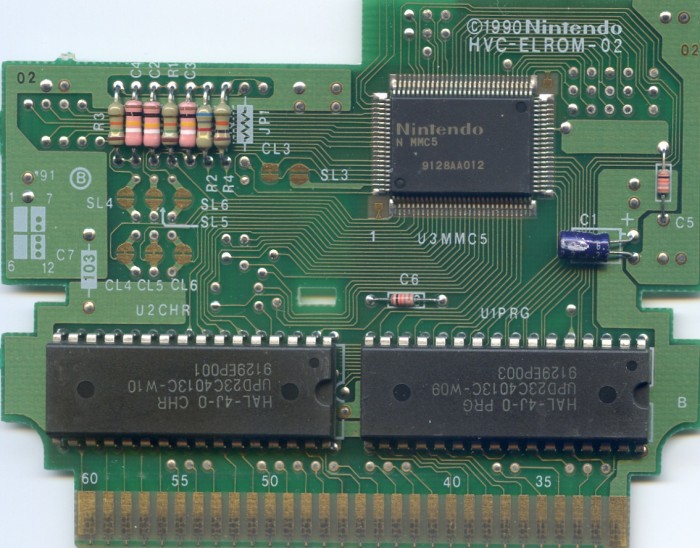

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C4013C W09 | Mask ROM 512 KB | DIP-32 | 9129 EP003 | 9129 | |
| U2 CHR | NEC | UPD23C4013C W10 | Mask ROM 512 KB | DIP-32 | 9129 EP001 | 9129 | |
| U3 MMC5 | NEC | MMC5 | Nintendo MMC5 | PQFP-100 | 9128 AA012 | 9128 |
