Release Info
| Catalog ID | NES-4M-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | February 1991 |
| Publisher | Irem |
| Developer | Tamtex |
| Players | 1 |
| Peripherals | NES Controller |

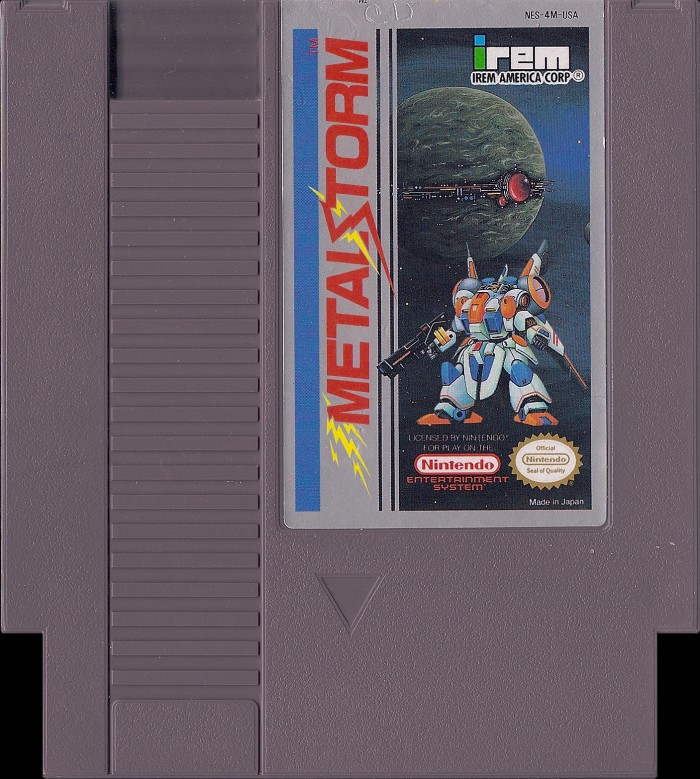

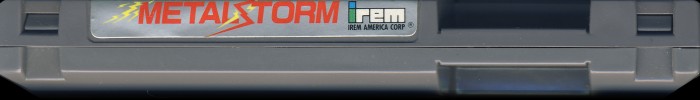

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-4M-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 21 |

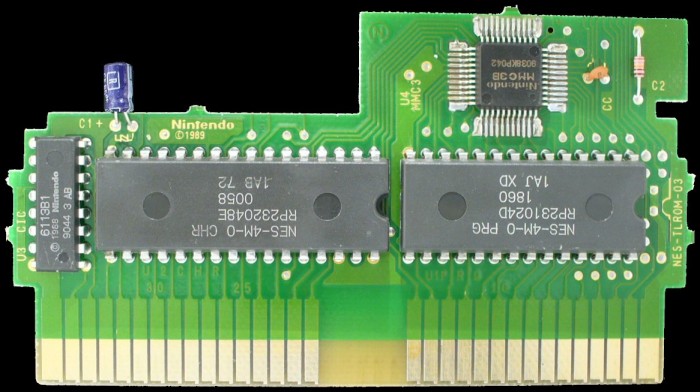

PCB Properties
| Name | NES-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9102 |
| Est First Run | January 1991 |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-4M-0 PRG | 128 KB | 5D05CCD0 | 1 |
| CHR0 | NES-4M-0 CHR | 256 KB | 1E7F6E87 | 1 |
| N/A | ROMs Combined | 384 KB | BCACBBF4 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231024D 1860 | Mask ROM 128 KB | DIP-28 | 1AJ XD | 9102 | |
| U2 CHR | Ricoh | RP232048E 0058 | Mask ROM 256 KB | DIP-32 | 1AB 72 | 9101 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9044 3 AB | 9044 | |
| U4 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9038 KP042 | 9038 |
