Release Info
| Catalog ID | NES-RE-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | March 24, 1994 |
| Publisher | Jaleco |
| Developer | TOSE Software |
| Players | 2 |
| Peripherals | NES Controller |

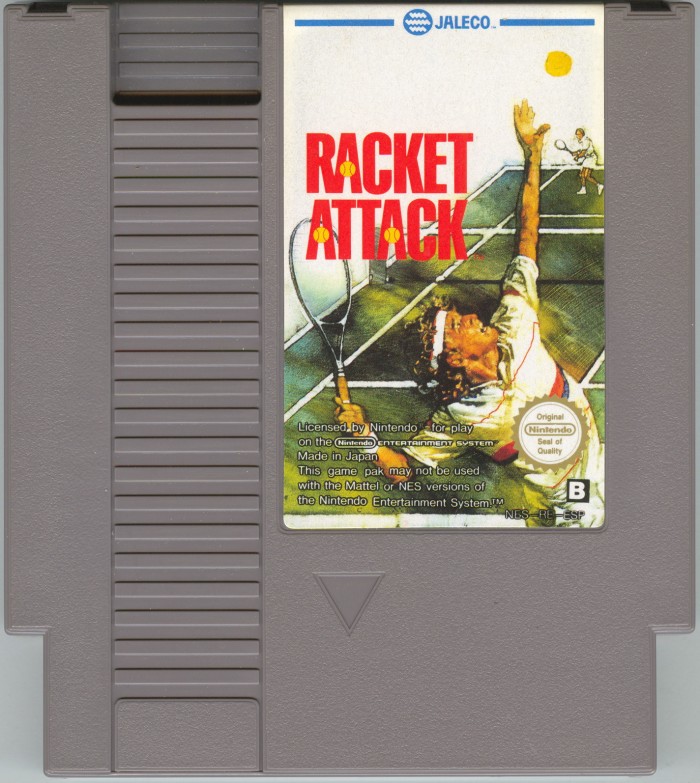

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-RE-ESP |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 20 |

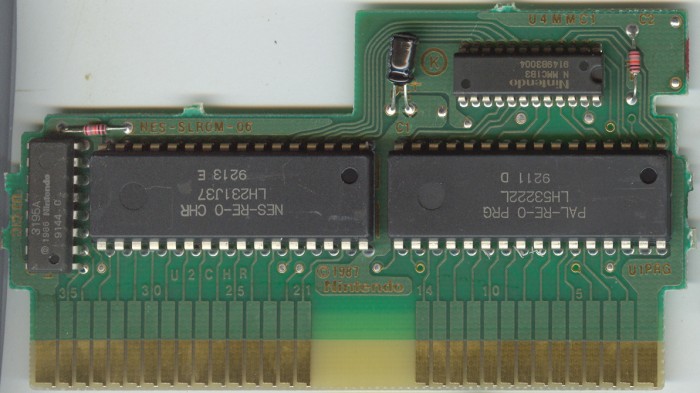

PCB Properties
| Name | NES-SLROM-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9213 |
| Est First Run | March 1992 |
| PCB Class | NES-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC1B3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-RE-0 PRG | 256 KB | E3F40F20 | 1 |
| CHR0 | NES-RE-0 CHR | 128 KB | 3374191D | 2 |
| N/A | ROMs Combined | 384 KB | D72560E1 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH5322 2L | Mask ROM 256 KB | DIP-32 | 9211 D | 9211 | |
| U2 CHR | Sharp | LH231J 37 | Mask ROM 128 KB | DIP-32 | 9213 E | 9213 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9144 C | 9144 | |
| U4 MMC1 | NEC | MMC1B3 | Nintendo MMC1 | DIP-24 | 9149 B3004 | 9149 |
