Release Info
| Catalog ID | NES-FN-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | September 1989 |
| Publisher | LJN |
| Developer | Atlus |
| Players | 2 |
| Peripherals | NES Controller |

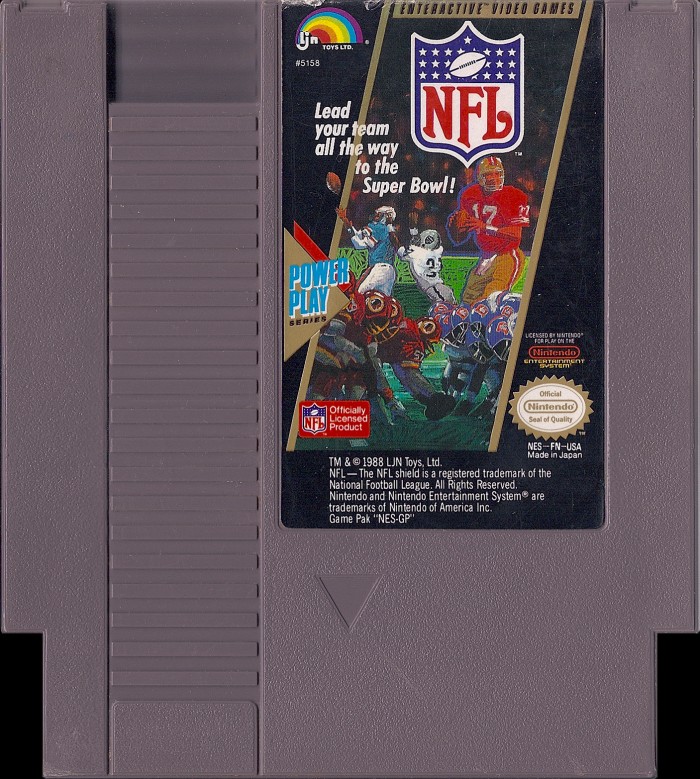

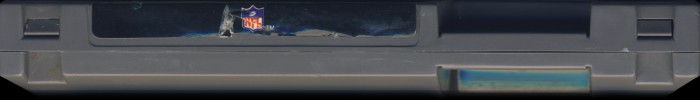

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-FN-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 07 |
PCB Properties
| Name | NES-UNROM-09 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9011 - 9027 (2) |
| Est First Run | March 1990 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-FN-0 PRG | 128 KB | 35B6FEBF | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2307 9J | Mask ROM 128 KB | DIP-28 | 9011 E | 9011 | |
| U2 CHR RAM | Sony | CXK5864PN-15LL | SRAM 8 KB | DIP-28 | 9K 35E | 8944 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9006 7 CA | 9006 | |
| U4 HC161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 001 EN | 9001 | |
| U5 HC32 | GoldStar | GD74HC32 | 74-32 Series | DIP-14 | 9002 | 9002 |
