Release Info
| Catalog ID | NBF-JX (10) |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 20, 1990 |
| Publisher | Nichibutsu |
| Developer | Nichibutsu |
| Players | 1 |
| Peripherals | Famicom Controller |

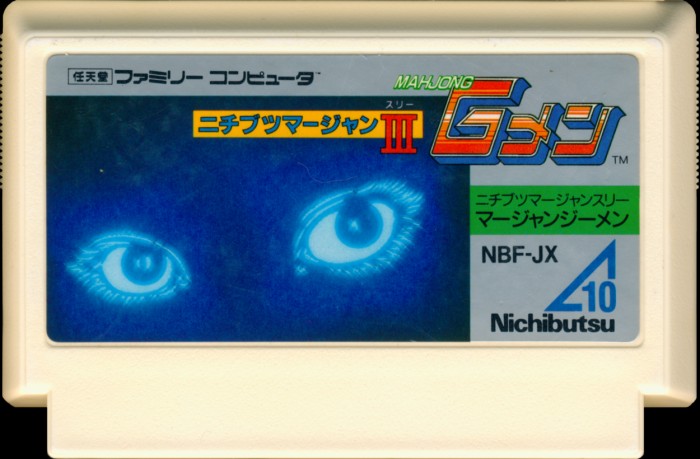

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | NBF-JX |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

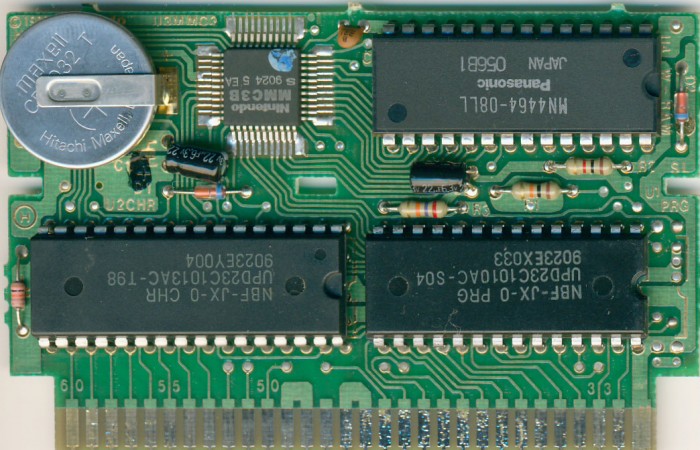

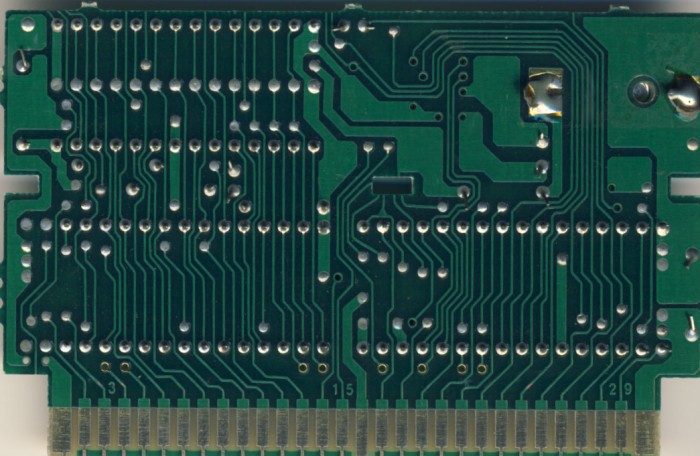

PCB Properties
| Name | HVC-TKROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9024 |
| Est First Run | June 1990 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NBF-JX-0 PRG | 128 KB | 2E2F9018 | 1 |
| CHR0 | NBF-JX-0 CHR | 128 KB | 156DFCDD | 1 |
| N/A | ROMs Combined | 256 KB | FA2A8A8B | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010AC S04 | Mask ROM 128 KB | DIP-28 | 9023 EX033 | 9023 | |
| U2 CHR | NEC | UPD23C1013AC T98 | Mask ROM 128 KB | DIP-32 | 9023 EY004 | 9023 | |
| U3 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9024 5 EA | 9024 | |
| U4 W-RAM | Panasonic | MN4464-08LL | SRAM 8 KB | DIP-28 | 056 B1 | 9020 |
