Release Info
| Catalog ID |
TFS-ZD |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
September 5, 1987 |
| Publisher |
Toemiland |
| Developer |
Micronics / Khaos |
| Players |
1 |
| Peripherals |
Famicom Controller |

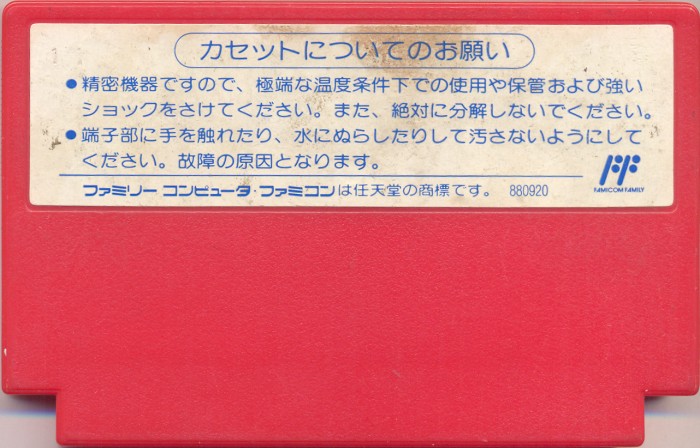

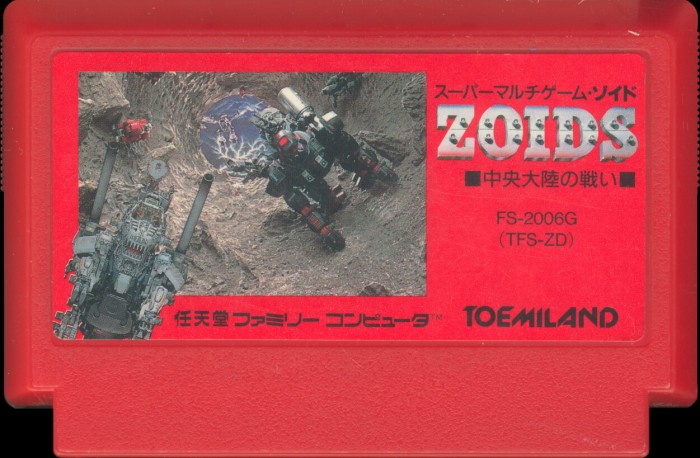

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Red |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
TFS-ZD |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
00 |
PCB Properties
| Name |
HVC-UNROM-09 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8733 - 8929 (2) |
| Est First Run |
August 1987 |
| PCB Class |
HVC-UNROM |
| iNES Mapper |
2 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
TFS-ZD-1 PRG |
128 KB |
E0B6B7BB |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG |
Sharp |
LH2307
8B
|
Mask ROM
128 KB
|
DIP-28 |
8929
E
|
8929 |
|
| U2 CHR RAM |
NEC |
64S20
|
SRAM
8 KB
|
DIP-28 |
8925
M5
|
8925 |
|
| U3 HC161 |
Texas Instruments |
SN74HC161N
|
74-161 Series
|
DIP-16 |
926
J
|
8926 |
|
| U4 HC32 |
Texas Instruments |
SN74HC32N
|
74-32 Series
|
DIP-14 |
924
J
|
8924 |
|
