Release Info
| Catalog ID |
TFS-ZD |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
September 5, 1987 |
| Publisher |
Toemiland |
| Developer |
Micronics / Khaos |
| Players |
1 |
| Peripherals |
Famicom Controller |

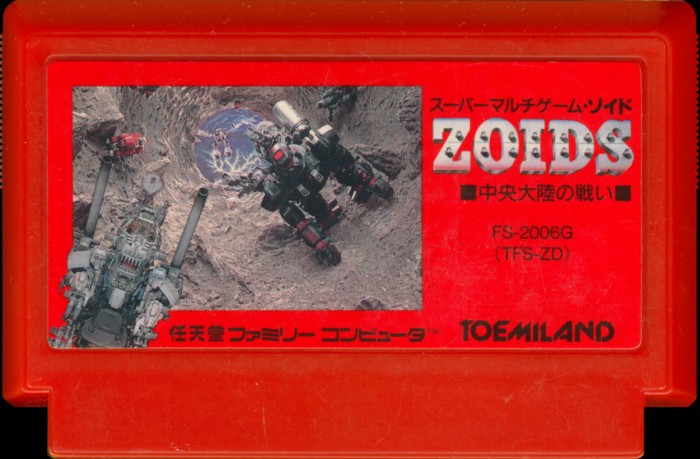

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Red |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
TFS-ZD |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
00 |
PCB Properties
| Name |
HVC-UNROM-03 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8733 - 8929 (2) |
| Est First Run |
August 1987 |
| PCB Class |
HVC-UNROM |
| iNES Mapper |
2 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
TFS-ZD-0 PRG |
128 KB |
D0DF726E |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| PRG-ROM |
Sharp |
LH2310
0B
|
Mask ROM
128 KB
|
DIP-28 |
8733
D
|
8733 |
|
| CHR RAM |
Toshiba |
TC5565APL-15L
|
SRAM
8 KB
|
DIP-28 |
8639
HBK
|
8639 |
|
| LS161 |
Toshiba |
74HC161AP
|
74-161 Series
|
DIP-16 |
8729
H
|
8729 |
|
| LS32 |
Toshiba |
74HC32AP
|
74-32 Series
|
DIP-14 |
8729
H
|
8729 |
|
Additional Images
PCB Images
