Release Info
| Catalog ID | CDS-PE |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | June 18, 1993 |
| Publisher | Coconuts |
| Developer | Marionette |
| Players | 1 |
| Peripherals | Famicom Controller |

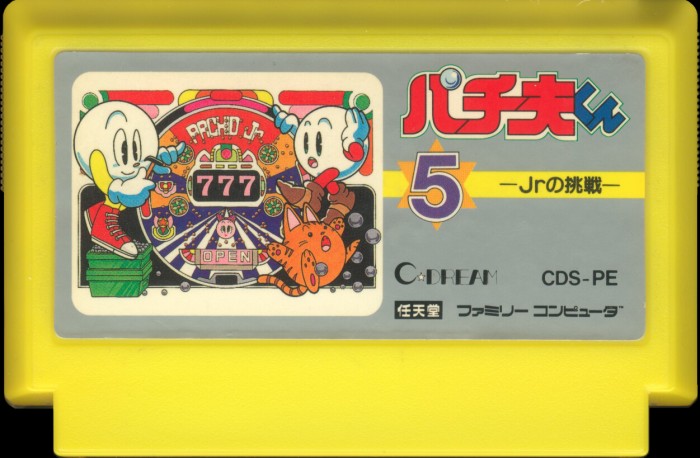

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Yellow |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | CDS-PE |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |
PCB Properties
| Name | HVC-TKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9320 |
| Est First Run | May 1993 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | CDS-PE-0 PRG | 256 KB | 9525FA38 | 1 |
| CHR0 | CDS-PE-0 CHR | 128 KB | 45FD2145 | 1 |
| N/A | ROMs Combined | 384 KB | 9B3C5124 | 1 |

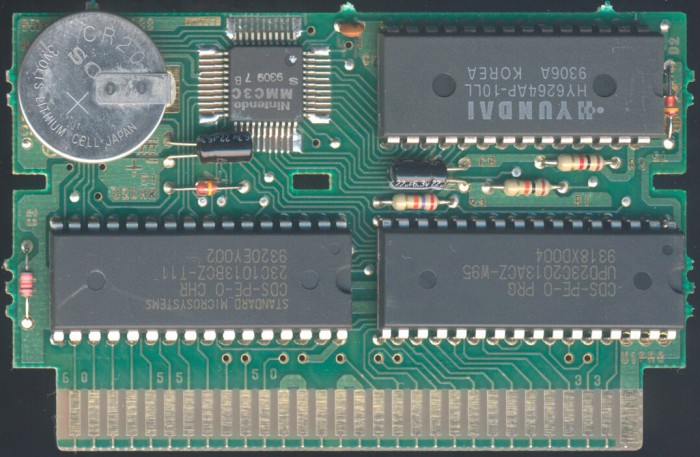

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013ACZ W95 | Mask ROM 256 KB | DIP-32 | 9318 XD004 | 9318 | |
| U2 CHR | NEC | 23C1013BCZ T11 | Mask ROM 128 KB | DIP-32 | 9320 EY002 | 9320 | |
| U3 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9309 7 B | 9309 | |
| U4 W-RAM | Hyundai | HY6264AP-10LL | SRAM 8 KB | DIP-28 | 9306 A | 9306 |
