Release Info
| Catalog ID |
CDS-84 |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
November 22, 1991 |
| Publisher |
Coconuts |
| Developer |
Marionette |
| Players |
1 |
| Peripherals |
Famicom Controller |

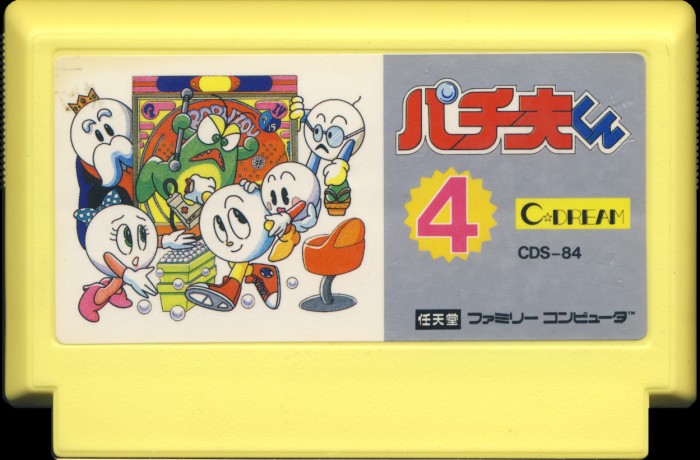

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Neon Yellow |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
CDS-84 |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
00 |
PCB Properties
| Name |
HVC-TNROM-02 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
9144 |
| Est First Run |
November 1991 |
| PCB Class |
HVC-TNROM |
| iNES Mapper |
4 |
| Mirroring |
Mapper Ctrl |
| Battery present |
Yes |
| WRAM |
8 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
MMC3C |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
CDS-84-0 PRG |
512 KB |
E08C8A60 |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG |
Sharp |
LH534J
46
|
Mask ROM
512 KB
|
DIP-32 |
9144
D
|
9144 |
|
| U2 CHR |
NEC |
64S20
|
SRAM
8 KB
|
DIP-28 |
9047
M5
|
9047 |
|
| U3 MMC3 |
NEC |
MMC3C
|
Nintendo MMC3
|
TQFP-44 |
9111
KP242
|
9111 |
|
| U4 W-RAM |
Samsung |
KM6264BL-10L
|
SRAM
8 KB
|
DIP-28 |
141
N
|
9141 |
|
