Release Info
| Catalog ID | HCT-N7/010 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 25, 1991 |
| Publisher | Hect |
| Developer | |
| Players | 1 |
| Peripherals | Famicom Controller |

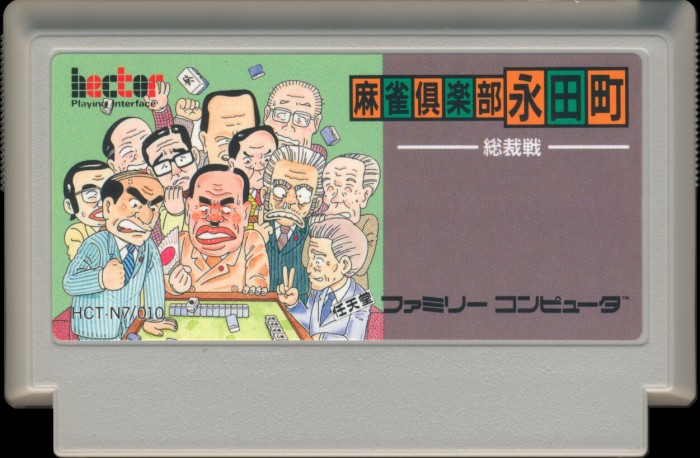

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Grey |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HCT-N7 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 12 |
PCB Properties
| Name | HVC-TNROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9113 |
| Est First Run | March 1991 |
| PCB Class | HVC-TNROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HCT-N7-0 PRG | 512 KB | 85BC0777 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH534J 17 | Mask ROM 512 KB | DIP-32 | 9113 D | 9113 | |
| U2 CHR | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9036 MD | 9036 | |
| U3 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9051 5 DB | 9051 | |
| U4 W-RAM | Panasonic | MN4464-08LL | SRAM 8 KB | DIP-28 | 0 51 | 9045 |
