Release Info
| Catalog ID | NAT-3R |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | January 25, 1991 |
| Publisher | Natsume |
| Developer | Natsume |
| Players | 1 |
| Peripherals | Famicom Controller |

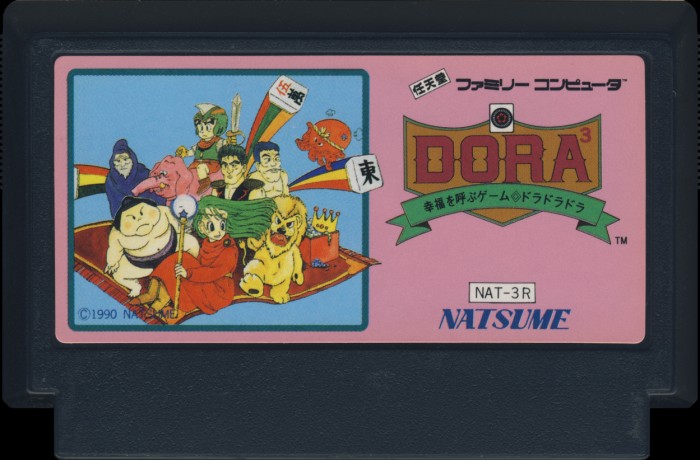

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | NAT-3R |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

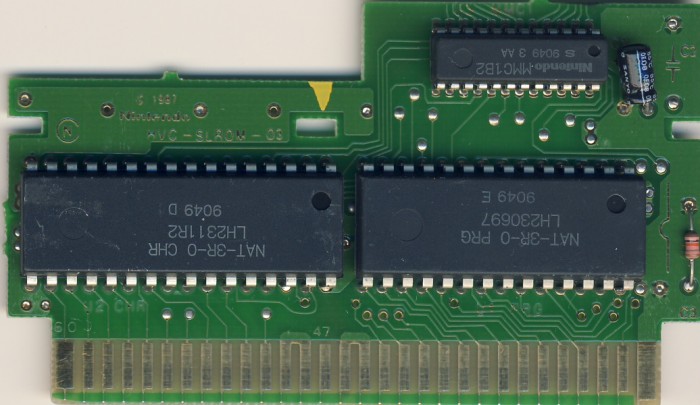

PCB Properties
| Name | HVC-SLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9049 |
| Est First Run | December 1990 |
| PCB Class | HVC-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAT-3R-0 PRG | 128 KB | DA40E4A2 | 1 |
| CHR0 | NAT-3R-0 CHR | 128 KB | 60468570 | 1 |
| N/A | ROMs Combined | 256 KB | 099B8CAA | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2306 97 | Mask ROM 128 KB | DIP-28 | 9049 E | 9049 | |
| U2 CHR | Sharp | LH2311 R2 | Mask ROM 128 KB | DIP-32 | 9049 D | 9049 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9049 3 AA | 9049 |
