Release Info
| Catalog ID | KSC-H8 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | August 3, 1990 |
| Publisher | Kemco |
| Developer | Kemco |
| Players | 1 |
| Peripherals | Famicom Controller |

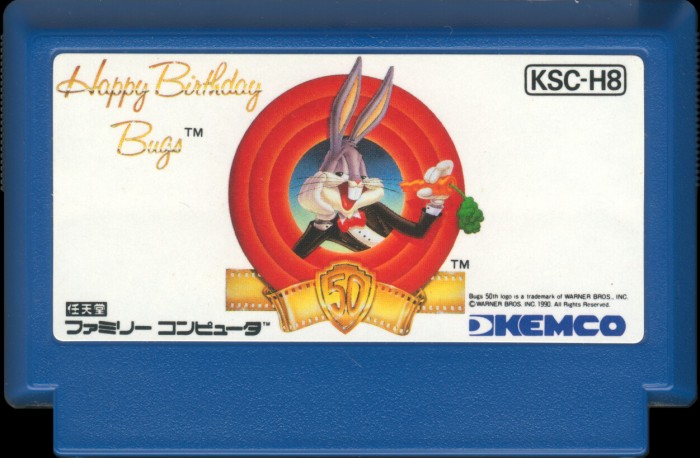

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | KSC-H8 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

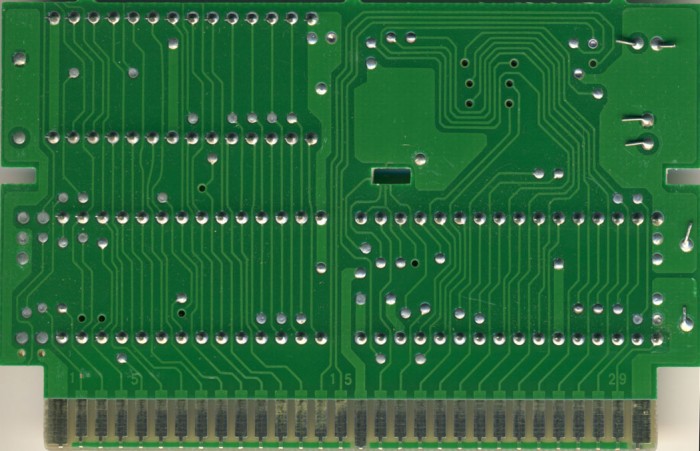

PCB Properties
| Name | HVC-TSROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9023 |
| Est First Run | June 1990 |
| PCB Class | HVC-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KSC-H8-0 PRG | 128 KB | 19B1A2E7 | 1 |
| CHR0 | KSC-H8-0 CHR | 128 KB | 86883E59 | 1 |
| N/A | ROMs Combined | 256 KB | B47569E2 | 1 |

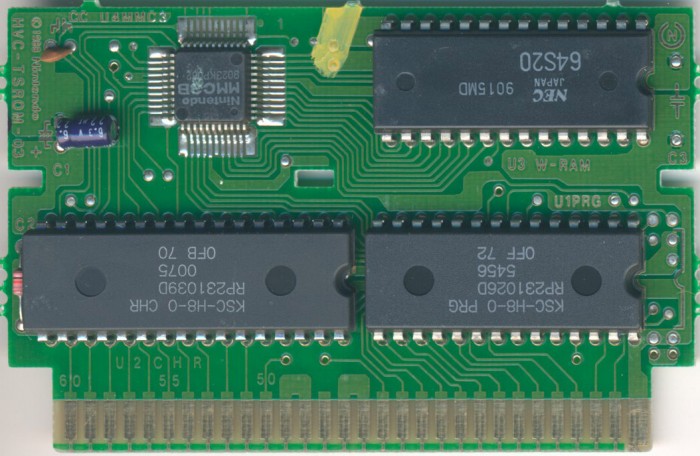

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5456 | Mask ROM 128 KB | DIP-28 | 0FF 72 | 9023 | |
| U2 CHR | Ricoh | RP231039D 0075 | Mask ROM 128 KB | DIP-32 | 0FB 70 | 9023 | |
| U3 W-RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9015 MD | 9015 | |
| U4 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9023 KP082 | 9023 |
