Release Info
| Catalog ID |
SQF-HJ |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
December 2, 1988 |
| Publisher |
Square |
| Developer |
Bits Laboratory |
| Players |
1 |
| Peripherals |
Famicom Controller |

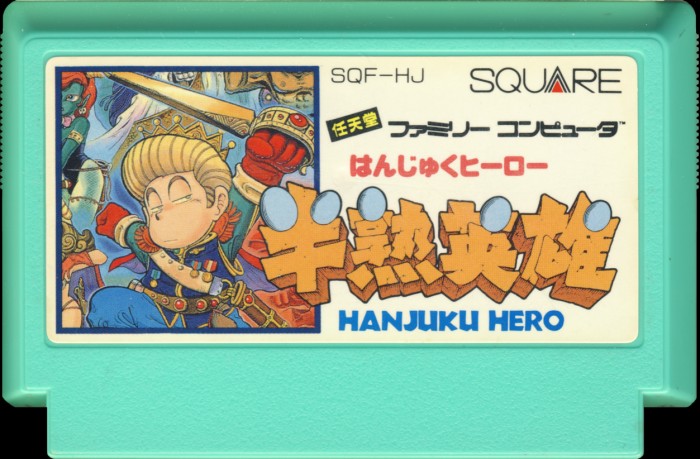

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Spring Green |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
SQF-HJ |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
09 |
PCB Properties
| Name |
HVC-SNROM-07 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8914 |
| Est First Run |
April 1989 |
| PCB Class |
HVC-SNROM |
| iNES Mapper |
1 |
| Mirroring |
Mapper Ctrl |
| Battery present |
Yes |
| WRAM |
8 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
MMC1A |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
SQF-HJ-0 PRG |
128 KB |
CD7A2FD7 |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG |
Fujitsu |
MB831002
|
Mask ROM
128 KB
|
DIP-28 |
8908
Z03
|
8908 |
|
| U2 W-RAM |
Sony |
CXK5864PN-15LL
|
SRAM
8 KB
|
DIP-28 |
9C
17
|
8909 |
|
| U3 CHR |
NEC |
64S20
|
SRAM
8 KB
|
DIP-28 |
8912
MX
|
8912 |
|
| U4 MMC1 |
Sharp |
MMC1A
|
Nintendo MMC1
|
DIP-24 |
8914
1 A
|
8914 |
|
Additional Images
PCB Images
