Release Info
| Catalog ID | TJC-I3 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | February 7, 1992 |
| Publisher | Technos |
| Developer | Technos |
| Players | 4 |
| Peripherals | Famicom Controller |

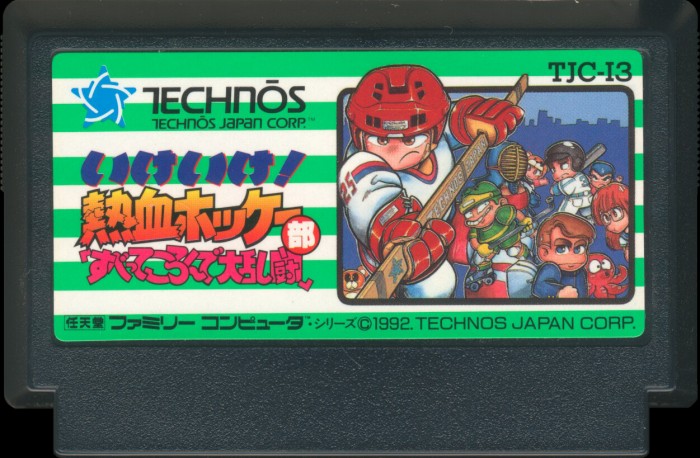

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TJC-I3 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

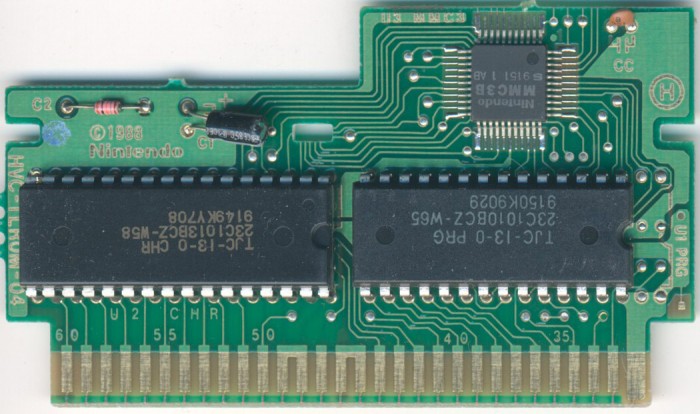

PCB Properties
| Name | HVC-TLROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9151 |
| Est First Run | December 1991 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TJC-I3-0 PRG | 128 KB | 346CD5D3 | 1 |
| CHR0 | TJC-I3-0 CHR | 128 KB | A9D24426 | 1 |
| N/A | ROMs Combined | 256 KB | 4F032933 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | 23C1010BCZ W65 | Mask ROM 128 KB | DIP-28 | 9150 K9029 | 9150 | |
| U2 CHR | NEC | 23C1013BCZ W58 | Mask ROM 128 KB | DIP-32 | 9149 KY708 | 9149 | |
| U3 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9151 1 AB | 9151 |
