Release Info
| Catalog ID | TKS-G1 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 5, 1987 |
| Publisher | Tokyo Shoseki |
| Developer | Musical Plan |
| Players | 1 |
| Peripherals | Famicom Controller |

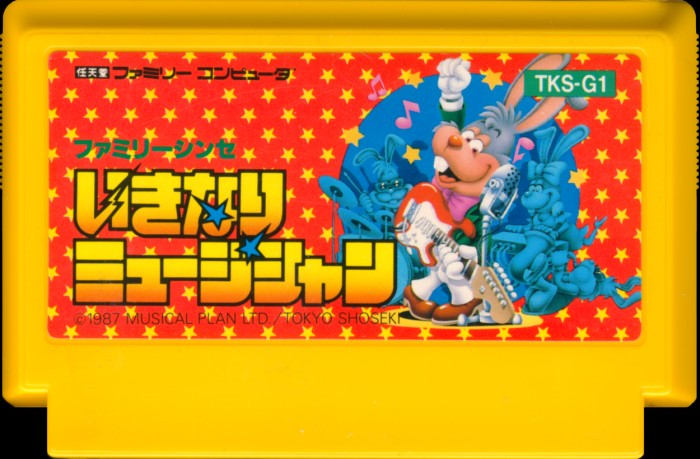

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Yellow |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TKS-G1 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |

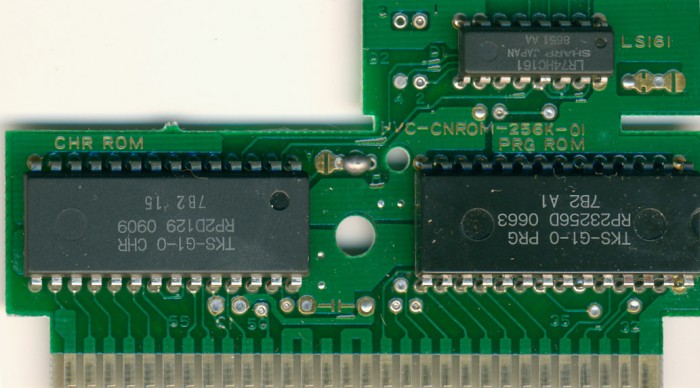

PCB Properties
| Name | HVC-CNROM-256K-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8707 |
| Est First Run | February 1987 |
| PCB Class | HVC-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TKS-G1-0 PRG | 32 KB | 8AA7CCE1 | 1 |
| CHR0 | TKS-G1-0 CHR | 16 KB | C20BEFC5 | 1 |
| N/A | ROMs Combined | 48 KB | 092EC15C | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Ricoh | RP23256D 0663 | Mask ROM 32 KB | DIP-28 | 7B2 A1 | 8707 | |
| CHR ROM | Ricoh | RP2D129 0909 | Mask ROM 16 KB | DIP-28 | 7B2 15 | 8707 | |
| LS161 | Sharp | LR74HC161 | 74-161 Series | DIP-16 | 8651 AA | 8651 |
