Release Info
| Catalog ID | NES-KR-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | May 1993 |
| Publisher | Nintendo |
| Developer | HAL Laboratory |
| Players | 1 |
| Peripherals | NES Controller |

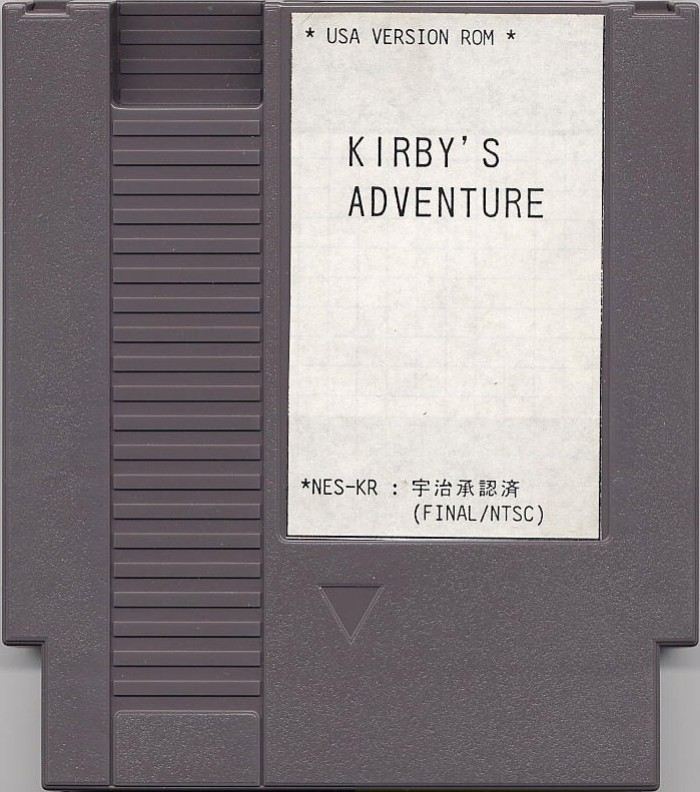

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-KR |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |
PCB Properties
| Name | NES-TKEPROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9312 - 9334 (3) |
| Est First Run | March 1993 |
| PCB Class | NES-TKEPROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx139, MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES KR-P-1 | 128 KB | 269EA29D | 1 |
| PRG1 | NES KR-P-2 | 128 KB | FF7E9E56 | 1 |
| PRG2 | NES KR-P-3 | 128 KB | E332DD37 | 1 |
| PRG3 | NES KR-P-4 | 128 KB | 5C575DE9 | 1 |
| CHR0 | NES KR-C-1 | 128 KB | 6F6D6A41 | 1 |
| CHR1 | NES KR-C-2 | 128 KB | 6F467E00 | 1 |
| N/A | ROMs Combined | 768 KB | D7794AFC | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | Hitachi | HN27C301AG-15 | UV EPROM 128 KB | DIP-32 | 9248 | 9248 | 00017EE0 |
| U10 | Toshiba | 74HC139AP | 74-139 Series | DIP-16 | 9049 H | 9049 | |
| U2 PRG-ROM | Hitachi | HN27C301AG-15 | UV EPROM 128 KB | DIP-32 | 9248 | 9248 | 00017EE0 |
| U3 PRG-ROM | Hitachi | HN27C301AG-15 | UV EPROM 128 KB | DIP-32 | 9248 | 9248 | 00017EE0 |
| U4 PRG-ROM | Hitachi | HN27C301AG-15 | UV EPROM 128 KB | DIP-32 | 9248 | 9248 | 00017EE0 |
| U5 CHR-ROM | Hitachi | HN27C301AG-15 | UV EPROM 128 KB | DIP-32 | 9248 | 9248 | 00017EE0 |
| U6 CHR-ROM | Hitachi | HN27C301AG-15 | UV EPROM 128 KB | DIP-32 | 9248 | 9248 | 00017EE0 |
| U7 W-RAM | Sony | CXK5864PN-15LL | SRAM 8 KB | DIP-28 | 9G 07E | 8927 | |
| U8 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9239 7 B | 9239 | |
| U9 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9232 1 AB | 9232 |
