Release Info
| Catalog ID | NES-KR-NOE |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | June 27, 1993 |
| Publisher | Nintendo |
| Developer | HAL Laboratory |
| Players | 1 |
| Peripherals | NES Controller |

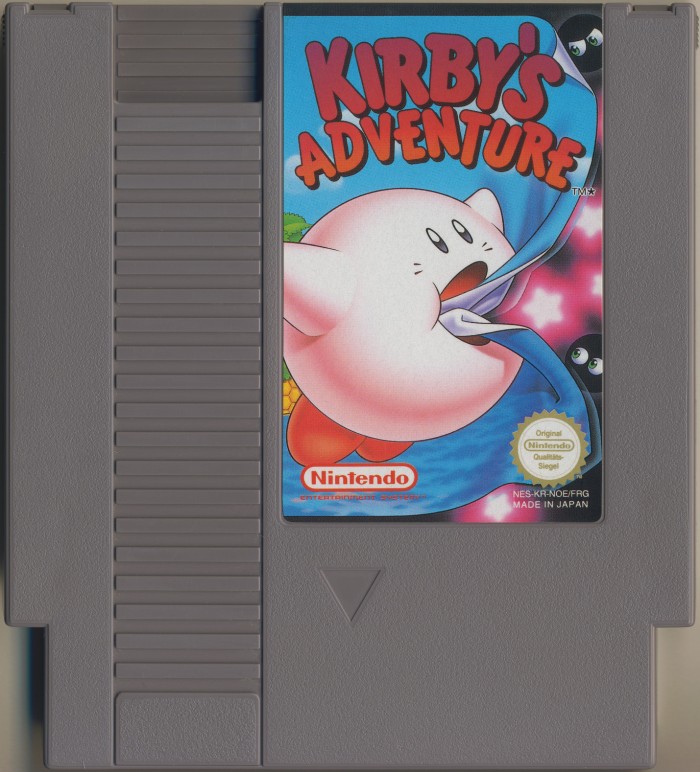

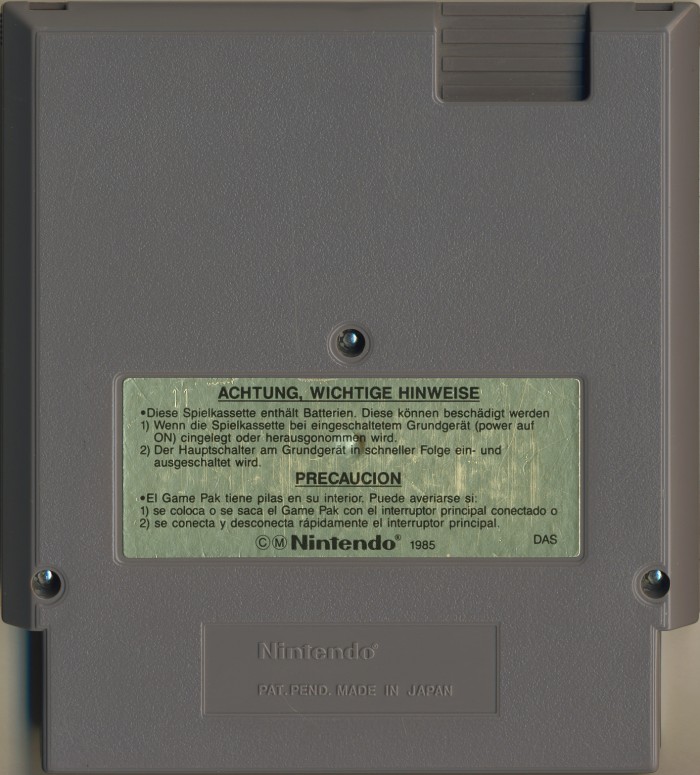

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-KR-NOE/FRG |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 07 |

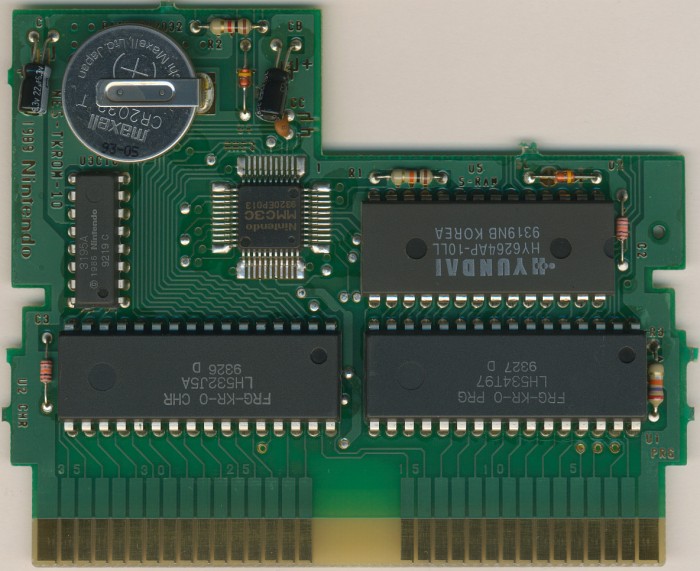

PCB Properties
| Name | NES-TKROM-10 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9326 - 9327 (3) |
| Est First Run | June 1993 |
| PCB Class | NES-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | FRG-KR-0 PRG | 512 KB | F287FA05 | 3 |
| CHR0 | FRG-KR-0 CHR | 256 KB | B7D7676B | 3 |
| N/A | ROMs Combined | 768 KB | 127D76F4 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH534T 97 | Mask ROM 512 KB | DIP-32 | 9327 D | 9327 | |
| U2 CHR | Sharp | LH532J 5A | Mask ROM 256 KB | DIP-32 | 9326 D | 9326 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9219 C | 9219 | |
| U4 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9320 EP013 | 9320 | |
| U5 S-RAM | Hyundai | HY6264AP-10LL | SRAM 8 KB | DIP-28 | 9319 NB | 9319 |
