Release Info
| Catalog ID | UNR-S6-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed » Unreleased |
| Release Date | |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 1 |
| Peripherals | NES Controller |

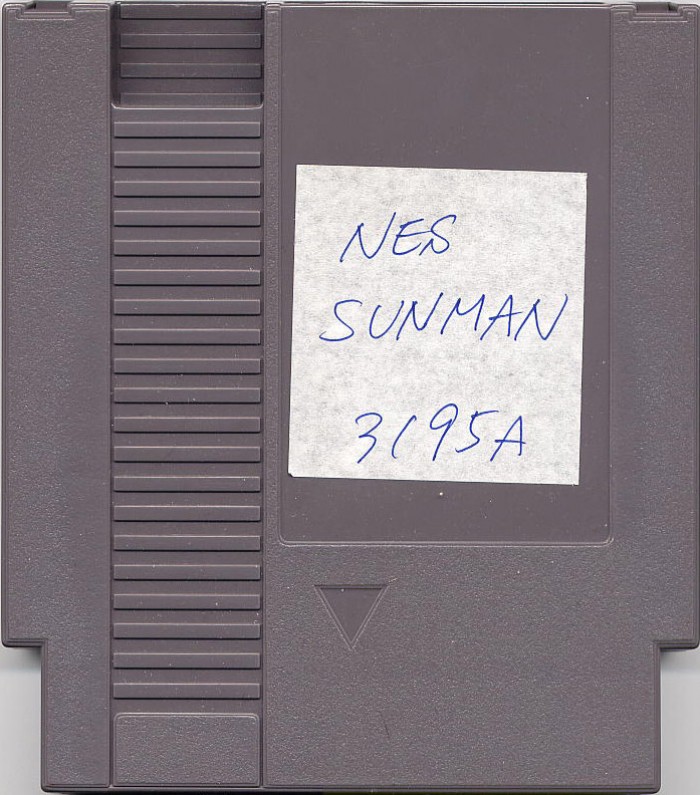

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

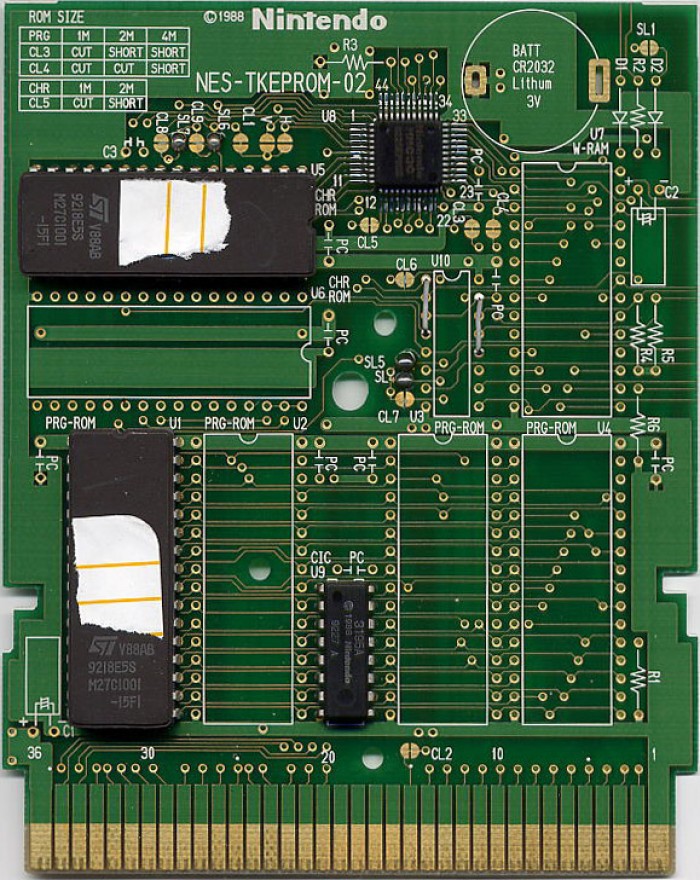

PCB Properties
| Name | NES-TKEPROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | NES-TKEPROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | 02759BEB | 1 |
| CHR0 | Not Present | 128 KB | 731A3076 | 1 |
| N/A | ROMs Combined | 256 KB | 015D4555 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | ST Micro | M27C1001-15F1 | UV EPROM 128 KB | DIP-32 | 9218 E5S | 9218 | V88AB |
| U5 CHR-ROM | ST Micro | M27C1001-15F1 | UV EPROM 128 KB | DIP-32 | 9218 E5S | 9218 | V88AB |
| U8 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | |||
| U9 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9227 A | 9227 |
