Release Info
| Catalog ID | SUN-SA-4500 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | July 25, 1985 |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 2 |
| Peripherals | Famicom Controller |

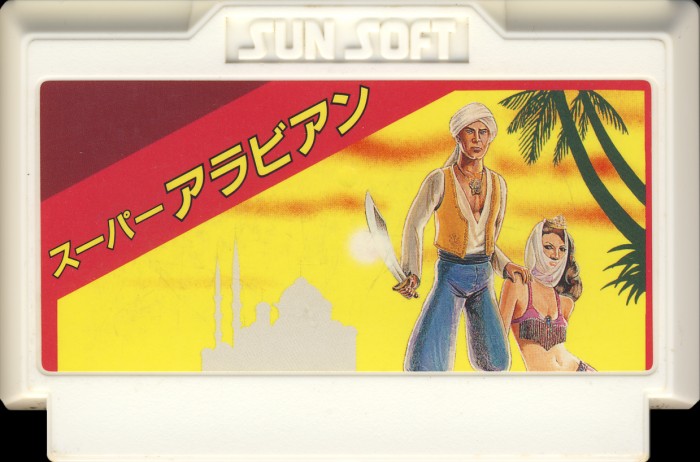

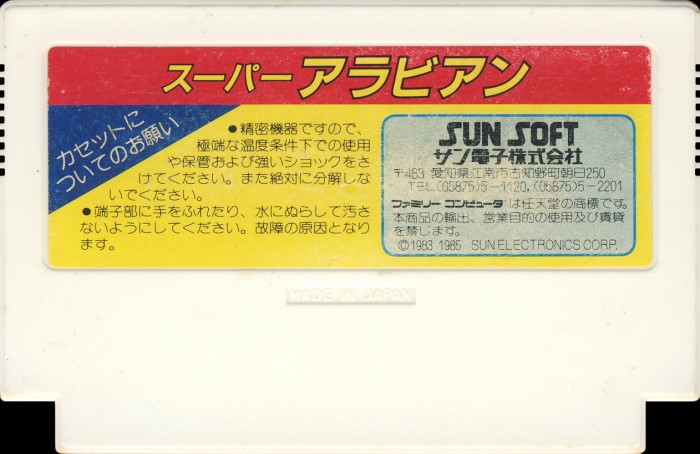

Cart Properties
| Cart Producer | Sunsoft |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

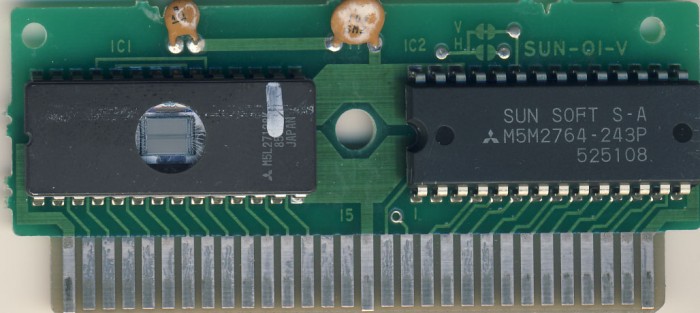

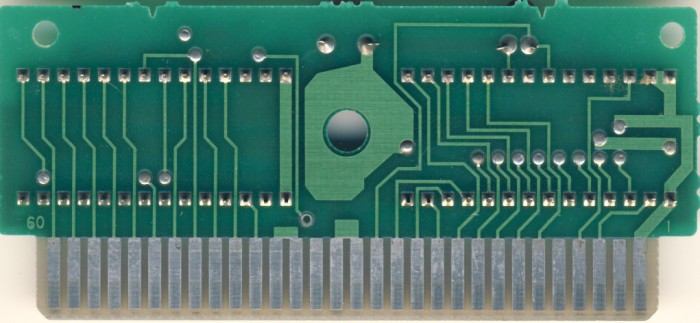

PCB Properties
| Name | SUN-01-V |
|---|---|
| PCB Producer | Sunsoft |
| Manufacturer | Not Specified |
| Mfg Range | 8525 |
| Est First Run | June 1985 |
| PCB Class | SUNSOFT-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 16 KB | F2EC0901 | 1 |
| CHR0 | SUN SOFT S-A | 8 KB | E1E3CF64 | 1 |
| N/A | ROMs Combined | 24 KB | 908505EE | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | Mitsubishi | M5L27128K | UV EPROM 16 KB | DIP-28 | 8518 H1 | 8518 | |
| IC2 | Mitsubishi | M5M2764 243P | PROM 8 KB | DIP-28 | 525 108 | 8525 |
