Release Info
| Catalog ID | NES-NV-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » Competition |
| Release Date | 1990 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

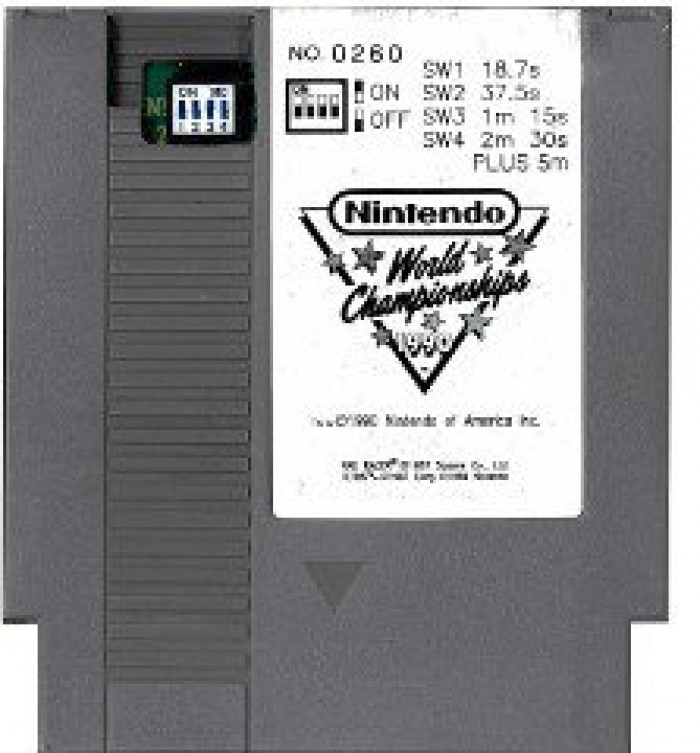

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Gold |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

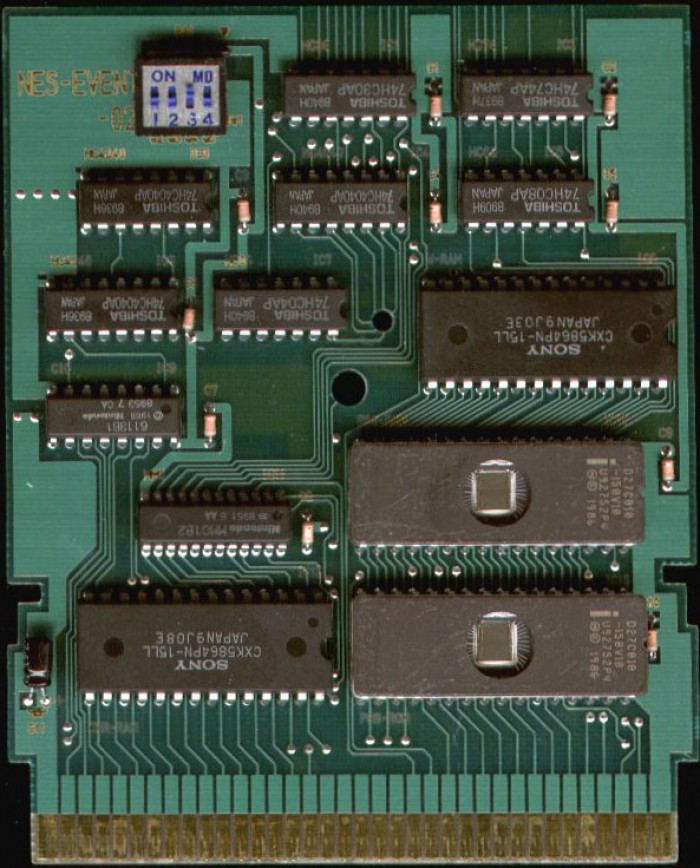

PCB Properties
| Name | NES-EVENT-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8953 |
| Est First Run | January 1990 |
| PCB Class | NES-EVENT |
| iNES Mapper | 105 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx08, 74xx30, 74xx4040, 74xx4040, 74xx4040, 74xx4040, 74xx74, MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG1 | Not Present | 128 KB | 4F834DCA | 1 |
| PRG0 | Not Present | 128 KB | 7B5CA760 | 1 |
| N/A | ROMs Combined | 256 KB | 0B0E128F | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 HC30 | Toshiba | 74HC30AP | 74-30 Series | DIP-14 | 8940 H | 8940 | |
| IC10 PRG-ROM | Intel | D27C010-150V10 | UV EPROM 128 KB | DIP-32 | 927 U | 8927 | |
| IC11 MMC | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8951 5 AA | 8951 | |
| IC12 CHR-RAM | Sony | CXK5864PN-15LL | SRAM 8 KB | DIP-28 | 9J 08E | 8940 | |
| IC13 PRG-ROM | Intel | D27C010-150V10 | UV EPROM 128 KB | DIP-32 | 927 U | 8927 | |
| IC2 HC74 | Toshiba | 74HC74AP | 74-74 Series | DIP-14 | 8937 H | 8937 | |
| IC3 HC4040 | Toshiba | 74HC4040AP | 74-4040 Series | DIP-16 | 8936 H | 8936 | |
| IC4 HC4040 | Toshiba | 74HC4040AP | 74-4040 Series | DIP-16 | 8940 H | 8940 | |
| IC5 HC08 | Toshiba | 74HC08AP | 74-08 Series | DIP-14 | 8909 H | 8909 | |
| IC6 HC4040 | Toshiba | 74HC4040AP | 74-4040 Series | DIP-16 | 8936 H | 8936 | |
| IC7 HC04 | Toshiba | 74HC04AP | 74-04 Series | DIP-14 | 8940 H | 8940 | |
| IC8 W-RAM | Sony | CXK5864PN-15LL | SRAM 8 KB | DIP-28 | 9J 03E | 8940 | |
| IC9 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8953 7 CA | 8953 |
