Release Info
| Catalog ID |
HSP-34 |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
August 8, 1990 |
| Publisher |
ASCII |
| Developer |
ASCII |
| Players |
1 |
| Peripherals |
,Famicom Controller |

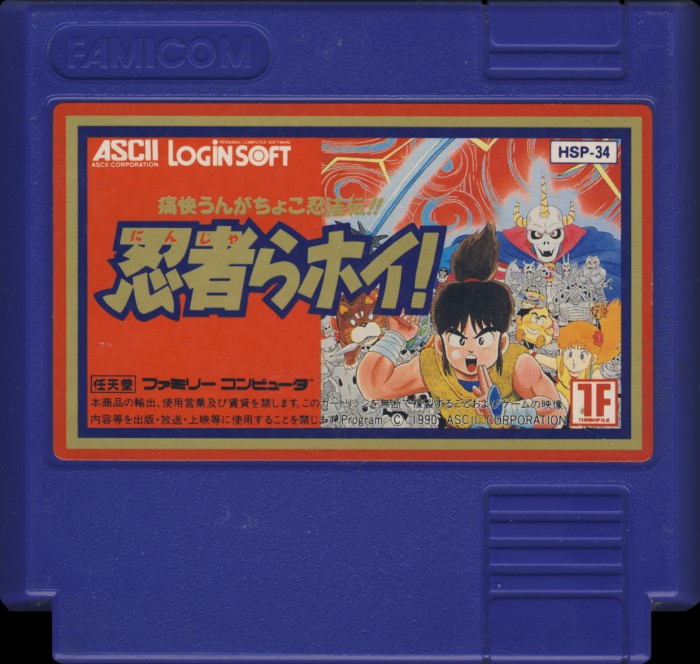

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Indigo |
| Form Factor |
Large w/ Famicom Logo |
| Embossed Text |
|
| Front Label ID |
HSP-34 |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
00 |
PCB Properties
| Name |
HVC-SUROM-01 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
9023 |
| Est First Run |
June 1990 |
| PCB Class |
HVC-SUROM |
| iNES Mapper |
1 |
| Mirroring |
Mapper Ctrl |
| Battery present |
Yes |
| WRAM |
8 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
MMC1B2 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
HSP-34-0 PRG |
512 KB |
CEE5857B |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG |
NEC |
UPD23C4013C
W06
|
Mask ROM
512 KB
|
DIP-32 |
9021
EY702
|
9021 |
|
| U2 CHR-RAM |
NEC |
64S20
|
SRAM
8 KB
|
DIP-28 |
9016
MD
|
9016 |
|
| U3 MMC1 |
Sharp |
MMC1B2
|
Nintendo MMC1
|
DIP-24 |
9023
3 AA
|
9023 |
|
| U4 W-RAM |
Panasonic |
MN4464-08LL
|
SRAM
8 KB
|
DIP-28 |
0
B1
|
9022 |
|
