Release Info
| Catalog ID |
VIC-CF |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
July 30, 1987 |
| Publisher |
Vic Tokai |
| Developer |
Vic Tokai |
| Players |
1 |
| Peripherals |
Famicom Controller |

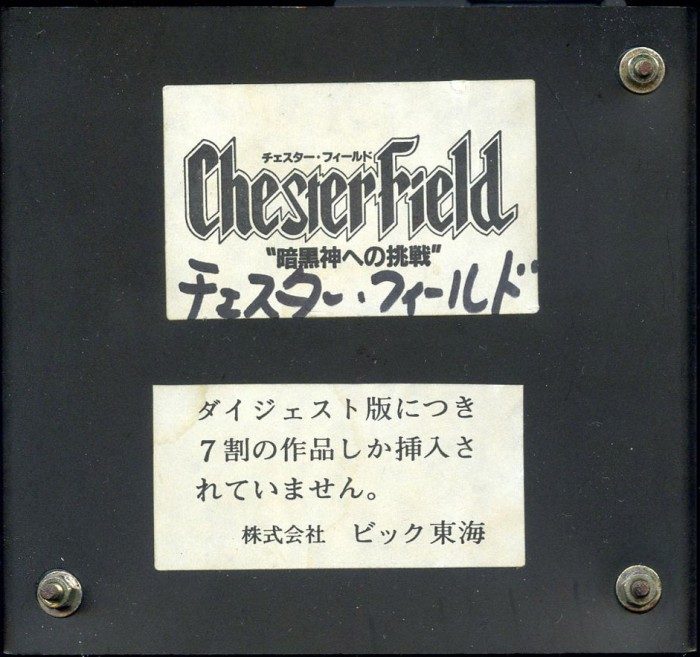

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Black |
| Form Factor |

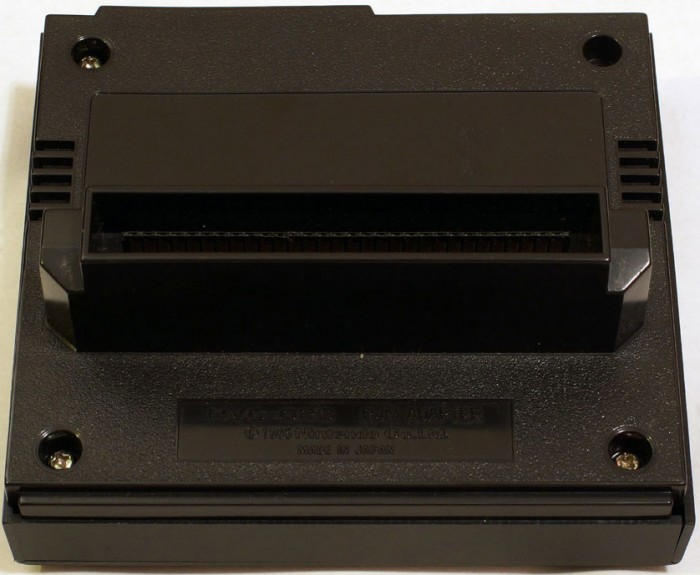

HVC-023 RAM Adapter |
| Embossed Text |
|
| Front Label ID |
Not Present |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
|
PCB Properties
| Name |
UNK-HVC-023-PROTO |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8728 |
| Est First Run |
July 1987 |
| PCB Class |
HVC-UNROM |
| iNES Mapper |
2 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx139, 74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG3 |
4 |
32 KB |
485ABE58 |
1 |
| PRG2 |
3 |
32 KB |
AF624FC1 |
1 |
| PRG1 |
2 |
32 KB |
D859983B |
1 |
| PRG0 |
1 |
32 KB |
ED3A98DE |
1 |
| N/A |
ROMs Combined |
128 KB |
53328FC4 |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| IC1 256K ROM |
Hitachi |
HN27256G-25
|
UV EPROM
32 KB
|
DIP-28 |
8542
|
8542 |
|
| IC10 64K CHR RAM |
Hitachi |
HM6264LP-15
|
SRAM
8 KB
|
DIP-28 |
8712
|
8712 |
|
| IC2 256K ROM |
Hitachi |
HN27256G-25
|
UV EPROM
32 KB
|
DIP-28 |
8542
|
8542 |
|
| IC3 256K ROM |
Hitachi |
HN27256G-25
|
UV EPROM
32 KB
|
DIP-28 |
8542
|
8542 |
|
| IC4 256K ROM |
Hitachi |
HN27256G-25
|
UV EPROM
32 KB
|
DIP-28 |
8542
|
8542 |
|
| IC6 LS161 |
Hitachi |
HD74LS161P
|
74-161 Series
|
DIP-16 |
5M1
1
|
8549 |
|
| IC7 LS32 |
Hitachi |
HD74LS32P
|
74-32 Series
|
DIP-14 |
5A2
1
|
8503 |
|
| IC8 LS139 |
Hitachi |
HD74LS139P
|
74-139 Series
|
DIP-16 |
5D3
T
|
8516 |
|
