Release Info
| Catalog ID | NAM-FCM-5800 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | October 4, 1991 |
| Publisher | Namco |
| Developer | Namco |
| Players | 4 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | |
|---|---|
| Color | Blue |
| Form Factor | Large |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

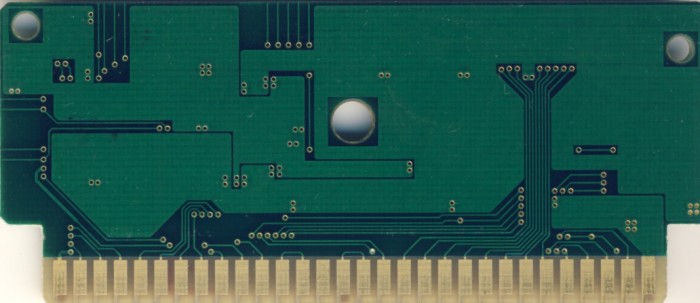

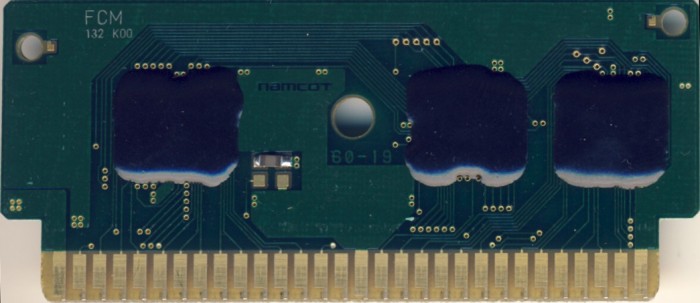

PCB Properties
| Name | 60-19 |
|---|---|
| PCB Producer | |
| Manufacturer | Fujitsu |
| Mfg Range | 9132 |
| Est First Run | August 1991 |
| PCB Class | NAMCOT-175 |
| iNES Mapper | 210 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 175 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | 0B4C2DDC | 1 |
| CHR0 | Not Present | 128 KB | 07DF9648 | 1 |
| N/A | ROMs Combined | 256 KB | 0C47946D | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | Fujitsu | FCM | Chip-on-Board PCB | PCB | 132 K00 | 9132 | |
| __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | ||||
| __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | ||||
| __Unknown | EP175 | Namcot 175 | EPOXY |
