Release Info
| Catalog ID | NES-2Z-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | October 1990 |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 1 |
| Peripherals | NES Controller |

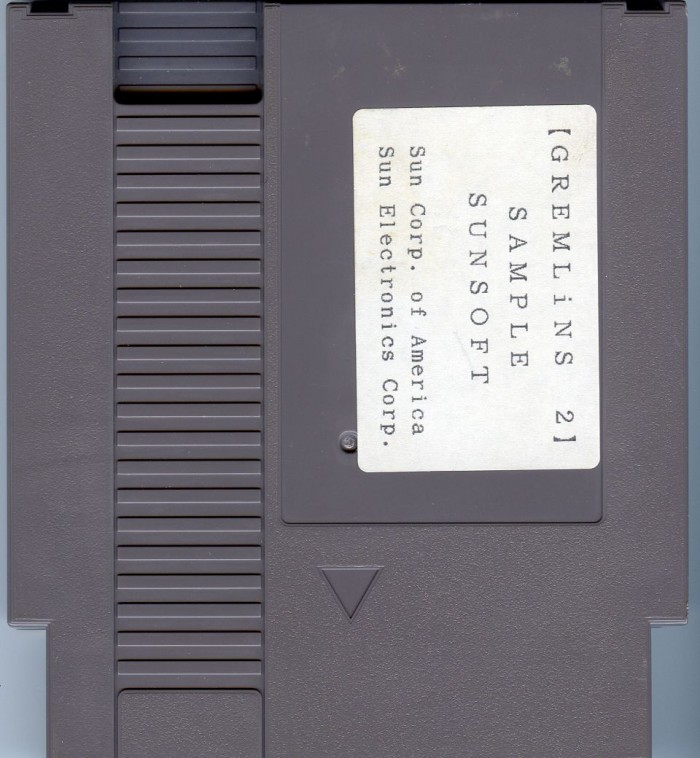

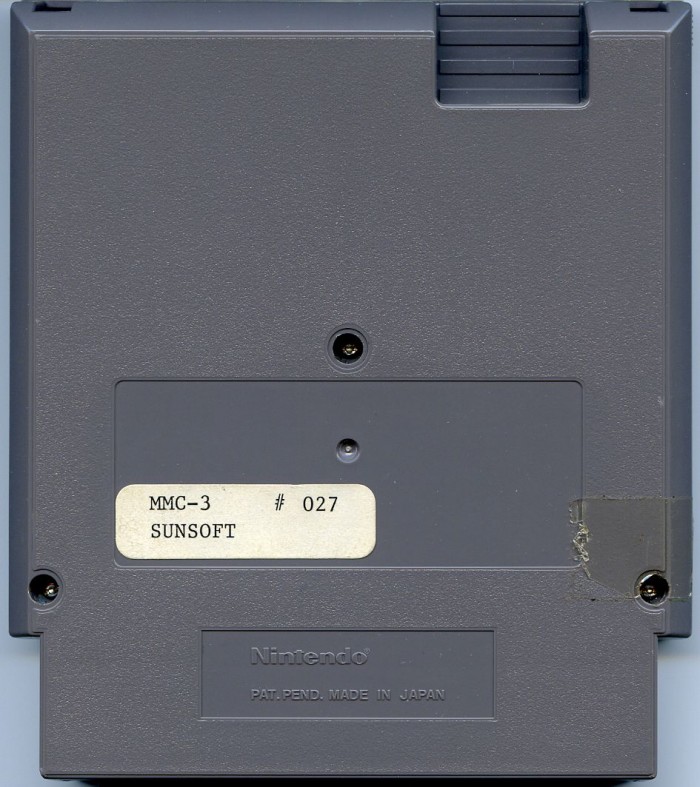

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |
PCB Properties
| Name | NES-TKEPROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9037 |
| Est First Run | September 1990 |
| PCB Class | NES-TKEPROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113A |
| Hardware | 74xx139, MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | GREMLINS 2 P | 128 KB | 4D04E95B | 1 |
| CHR0 | GREMLINS 2 C1 | 128 KB | 04118A24 | 1 |
| CHR1 | GREMLINS 2 C0 | 128 KB | 70F2E9D5 | 1 |
| N/A | ROMs Combined | 384 KB | DCEC4A59 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | Toshiba | TC571001D-20 | UV EPROM 128 KB | DIP-32 | 8832 AAA | 8832 | |
| U10 | NEC | D74HCT139C | 74-139 Series | DIP-16 | 8620 A7 | 8620 | |
| U5 CHR-ROM | Toshiba | TC571001D-20 | UV EPROM 128 KB | DIP-32 | 8820 E?? | 8820 | |
| U6 CHR-ROM | Toshiba | TC571001D-20 | UV EPROM 128 KB | DIP-32 | |||
| U8 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8948 EX | 8948 | |
| U9 CIC | Sharp | 6113A | Nintendo CIC | DIP-16 | 8933 7 BA | 8933 |
