Release Info
| Catalog ID | NES-2Z-ITA |
|---|---|
| Region | Italy (PAL-A) |
| Class | Licensed |
| Release Date | February 21, 1991 |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 1 |
| Peripherals | NES Controller |

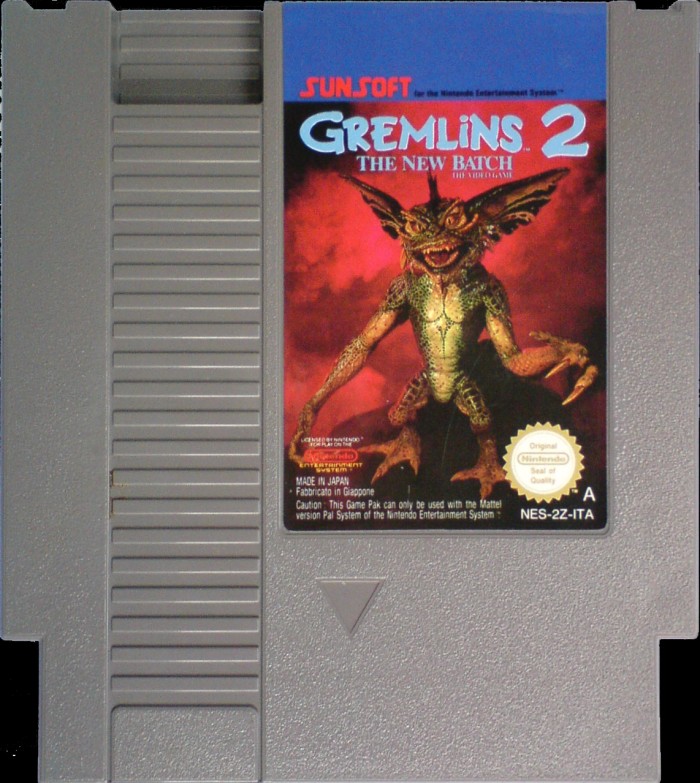

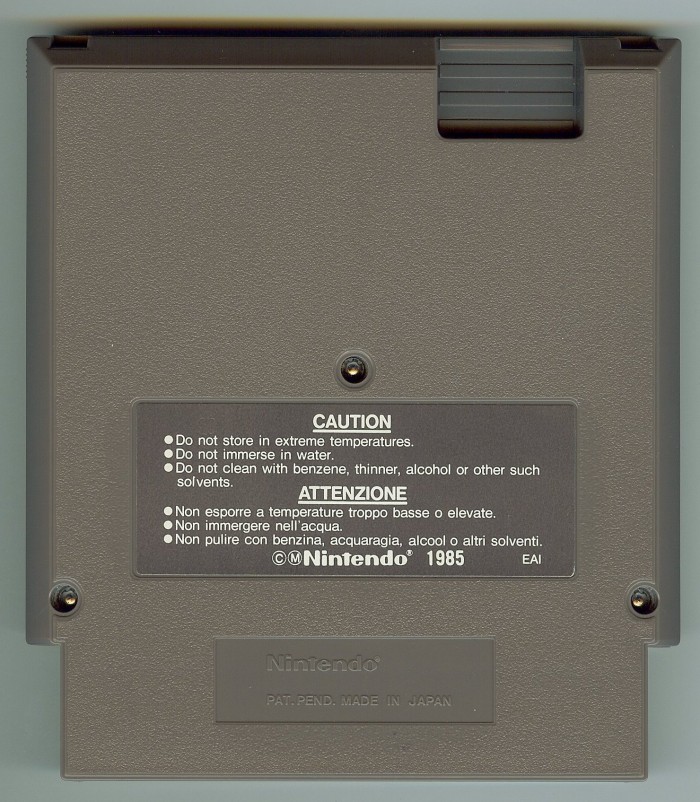

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-2Z-ITA |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

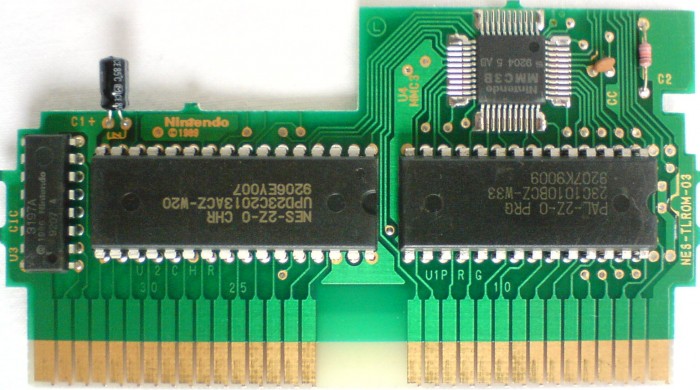

PCB Properties
| Name | NES-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9207 |
| Est First Run | February 1992 |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3197A |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-2Z-0 PRG | 128 KB | 0E2FCB2E | 4 |
| CHR0 | NES-2Z-0 CHR | 256 KB | 59C28B7F | 5 |
| N/A | ROMs Combined | 384 KB | 2B20B022 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | 23C1010BCZ W33 | Mask ROM 128 KB | DIP-28 | 9207 K9009 | 9207 | |
| U2 CHR | NEC | UPD23C2013CACZ W20 | Mask ROM 256 KB | DIP-32 | 9206 EY007 | 9206 | |
| U3 CIC | Sharp | 3197A | Nintendo CIC | DIP-16 | 9207 A | 9207 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9204 5 AB | 9204 |
