Release Info
| Catalog ID |
TCC-M3 |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
May 1, 1989 |
| Publisher |
Towa Chiki |
| Developer |
|
| Players |
1 |
| Peripherals |
Famicom Controller |

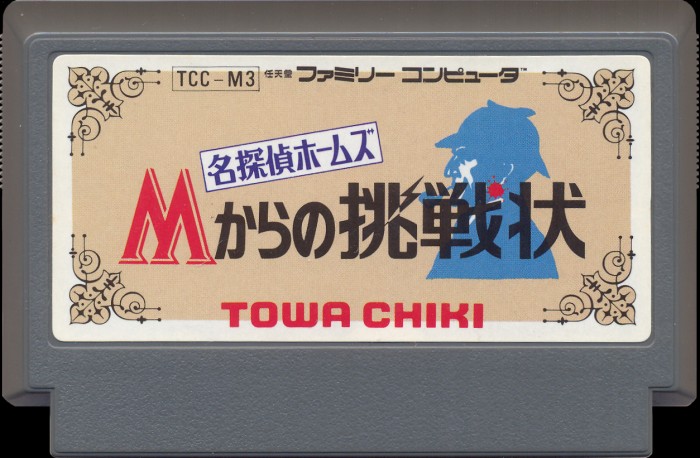

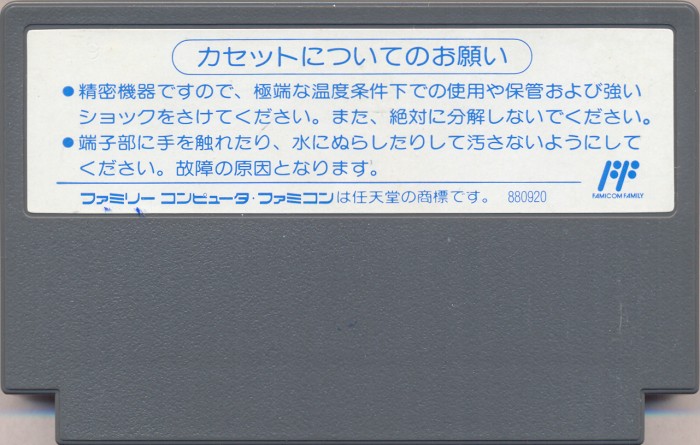

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Grey |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
TCC-M3 |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
09 |
PCB Properties
| Name |
HVC-SGROM-03 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8909 |
| Est First Run |
March 1989 |
| PCB Class |
HVC-SGROM |
| iNES Mapper |
1 |
| Mirroring |
Mapper Ctrl |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
MMC1A |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
TCC-M3-0 PRG |
256 KB |
0A73A792 |
0 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG |
NEC |
UPD23C2013
|
Mask ROM
256 KB
|
DIP-32 |
8909
PY
|
8909 |
|
| U2 CHR |
NEC |
64S20
|
SRAM
8 KB
|
DIP-28 |
8906
B5
|
8906 |
|
| U3 MMC1 |
Sharp |
MMC1A
|
Nintendo MMC1
|
DIP-24 |
8908
1 A
|
8908 |
|
Additional Images
PCB Images
