Release Info
| Catalog ID | NAM-MT-4900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | September 11, 1987 |
| Publisher | Namco |
| Developer | Atlus |
| Players | 1 |
| Peripherals | Famicom Controller |

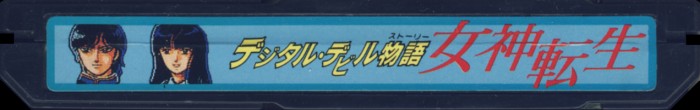

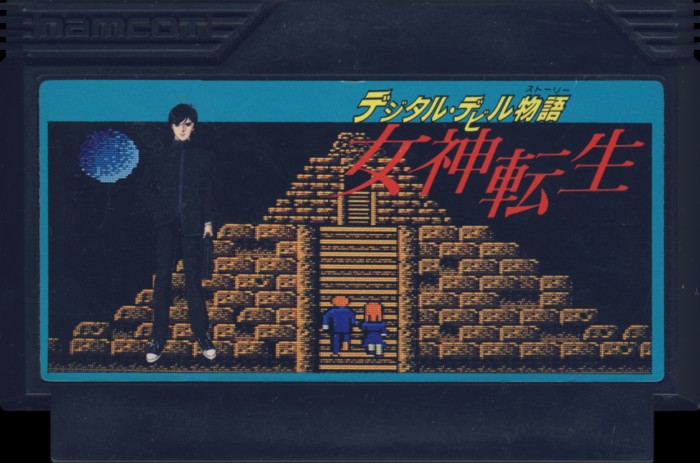

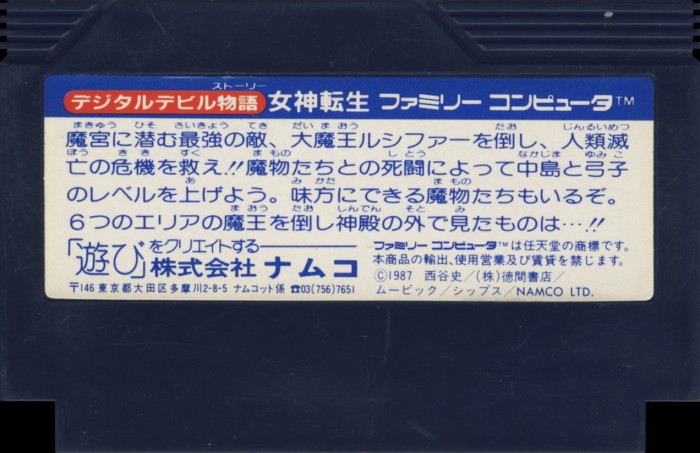

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

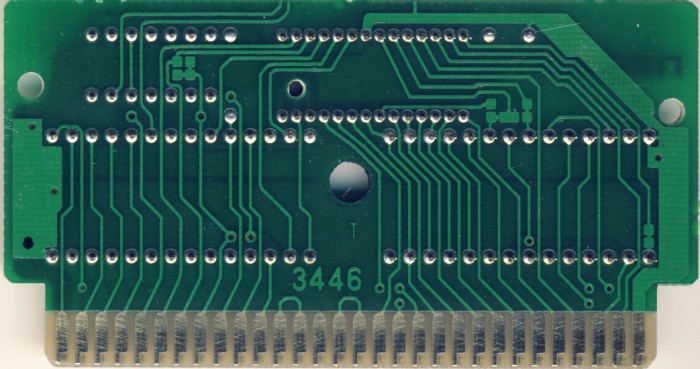

PCB Properties
| Name | 3446 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8736 |
| Est First Run | September 1987 |
| PCB Class | NAMCOT-3446 |
| iNES Mapper | 76 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 108, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOTMTPR | 128 KB | 9F3DA143 | 1 |
| CHR0 | NAMCOTMTCH | 128 KB | 73F1E3CF | 1 |
| N/A | ROMs Combined | 256 KB | 5393D949 | 1 |

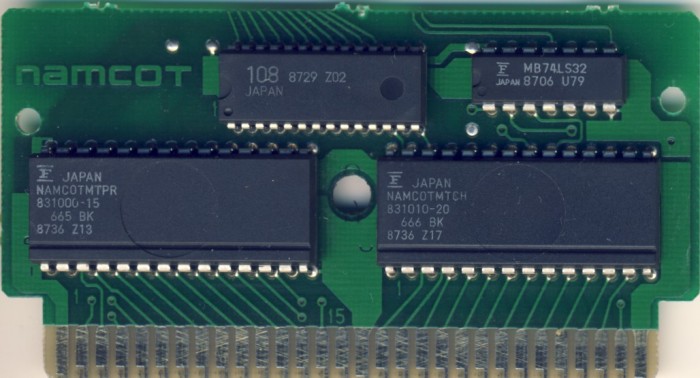

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | Fujitsu | 831000-15 665 BK | Mask ROM 128 KB | DIP-28 | 8736 Z13 | 8736 | |
| C | Fujitsu | 831010-20 666 BK | Mask ROM 128 KB | DIP-28 | 8736 Z17 | 8736 | |
| Fujitsu | 108 | Namcot 108 | DIP-28 | 8729 Z02 | 8729 | ||
| Fujitsu | MB74LS32 | 74-32 Series | DIP-14 | 8706 U79 | 8706 |
