Release Info
| Catalog ID | TGN-004-GL |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1989 |
| Publisher | Tengen |
| Developer | Tengen |
| Players | 2 |
| Peripherals | NES Controller |

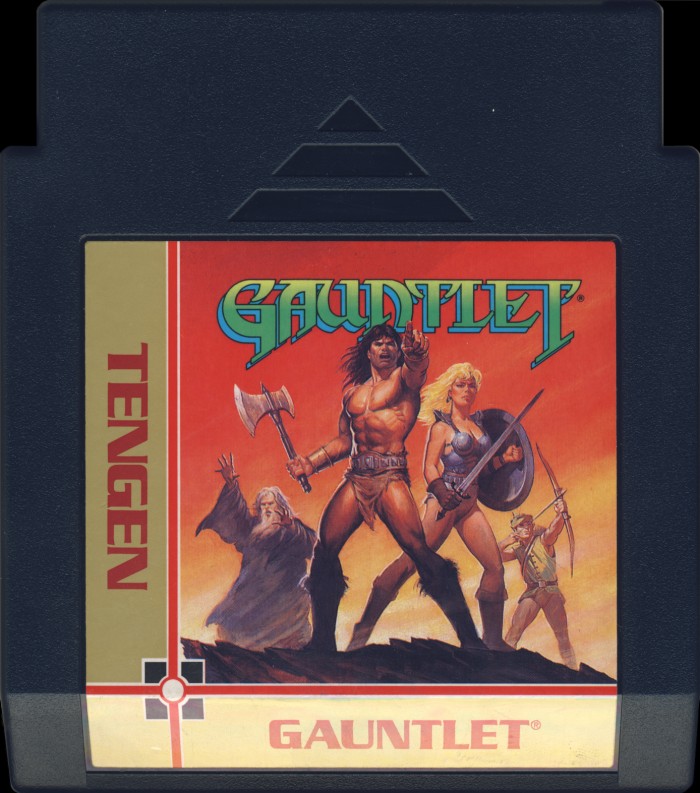

Cart Properties
| Cart Producer | Tengen |
|---|---|
| Color | Black |
| Form Factor | Original |
| Embossed Text | |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties

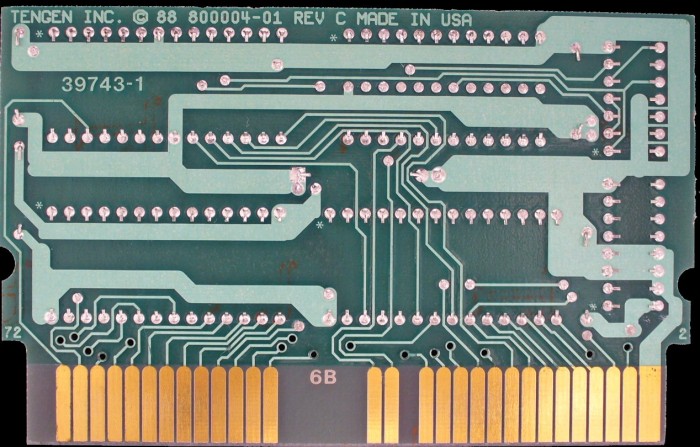

| Name | 800004-01 REV C |
|---|---|
| PCB Producer | Tengen |
| Manufacturer | Key Tronic |
| Mfg Range | 8850 - 9114 (3) |
| Est First Run | December 1988 |
| PCB Class | TENGEN-800004 |
| iNES Mapper | 206 |
| Mirroring | Four Screen |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 2 KB |
| CIC Type | 337002 |
| Hardware | 337001, 74xx00 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 335004-1011 | 128 KB | B19C48A5 | 3 |
| CHR0 | 335004-1012 | 64 KB | 1EEFF226 | 3 |
| N/A | ROMs Combined | 192 KB | CD50A092 | 3 |

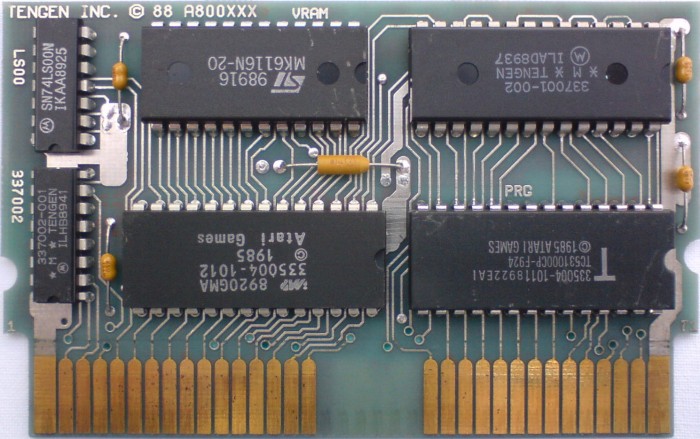

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Toshiba | TC531000CP F924 | Mask ROM 128 KB | DIP-28 | 8922 EAI | 8922 | |
| CHR | IMP | IM23512 | Mask ROM 64 KB | DIP-28 | 8920 GMA | 8920 | |
| VRAM | ST Micro | MK6116N-20 | SRAM 2 KB | DIP-24 | 8916 9 | 8916 | |
| 337002 | Motorola | 337002-001 | Tengen CIC | DIP-16 | 8941 ILHB | 8941 | |
| 337001 | Motorola | 337001-002 | Tengen MIMIC-1 | DIP-28 | 8937 ILAD | 8937 | |
| LS00 | Motorola | SN74LS00N | 74-00 Series | DIP-14 | 8925 IKAA | 8925 |
