Release Info
| Catalog ID | TFC-DDII-5900-41 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | January 31, 1992 |
| Publisher | Taito |
| Developer | Natsume |
| Players | 1 |
| Peripherals | Famicom Controller |

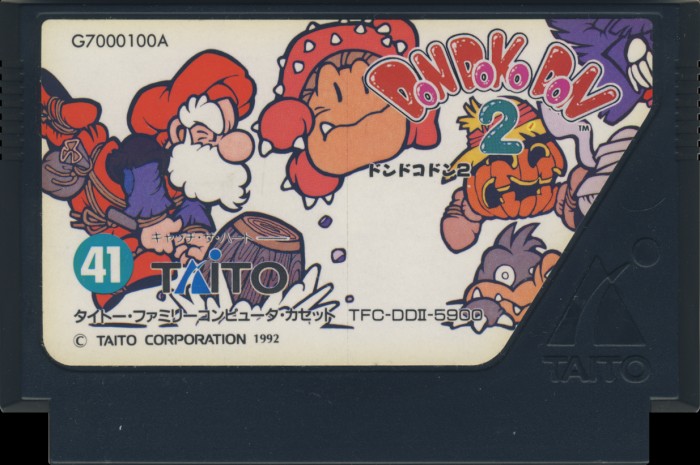

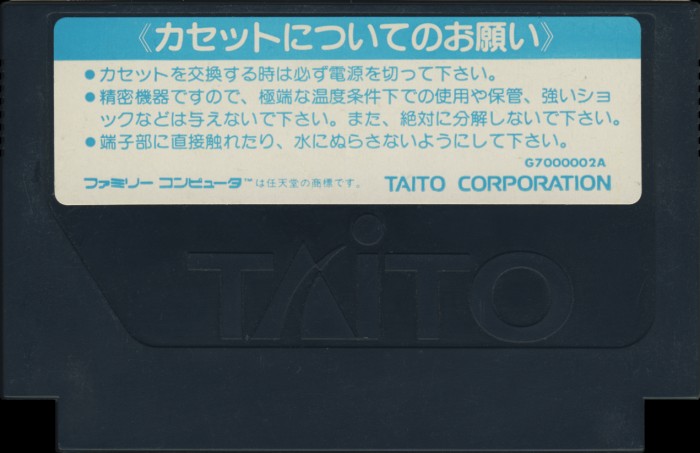

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Beveled Label / Logo 3 |
| Embossed Text | |
| Front Label ID | TFC-DDII-5900 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

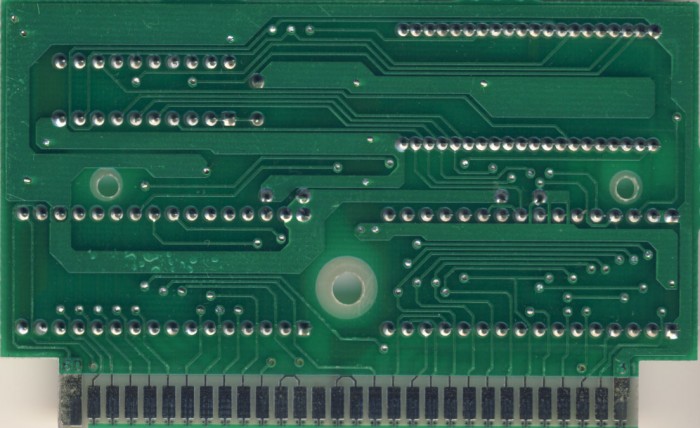

PCB Properties
| Name | J9100287A |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 9149 |
| Est First Run | December 1991 |
| PCB Class | TAITO-TC0190FMC+PAL16R4 |
| iNES Mapper | 48 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | PAL16R4, TC0190FMC |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | D11-01 | 128 KB | 49C84B4E | 1 |
| CHR0 | D11-02 | 256 KB | 2E7215D0 | 1 |
| N/A | ROMs Combined | 384 KB | A7B0536C | 1 |

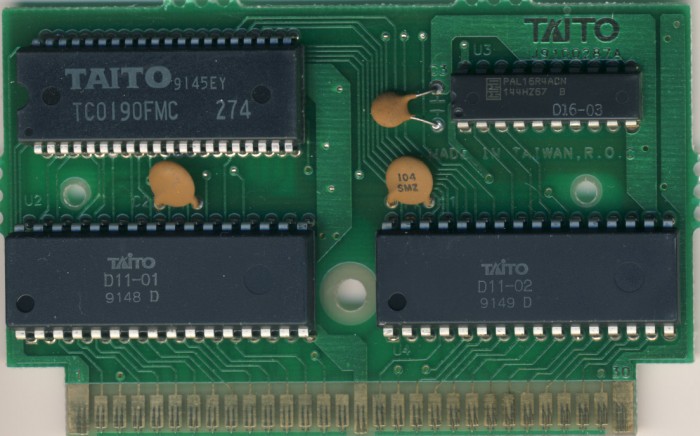

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | NEC | TC0190FMC 274 | Taito TC0190FMC | DIP-40 | 9145 EY | 9145 | |
| U2 | Sharp | LH2311 | Mask ROM 128 KB | DIP-32 | 9148 D | 9148 | |
| U3 | Monolithic Memories | PAL16R4ACN | PAL16 | DIP-20 | 144 HZ57 B | 9144 | D16-03 |
| U4 | Sharp | LH5321 | Mask ROM 256 KB | DIP-32 | 9149 D | 9149 |
