Release Info
| Catalog ID | TFC-DD-5900-30 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | March 9, 1990 |
| Publisher | Taito |
| Developer | Taito |
| Players | 2 |
| Peripherals | Famicom Controller |

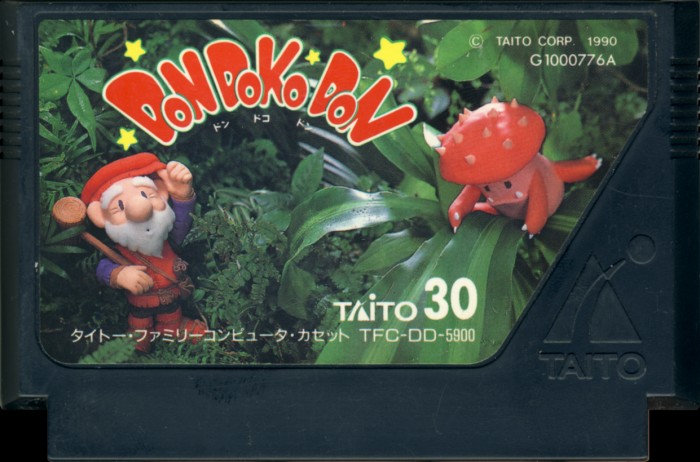

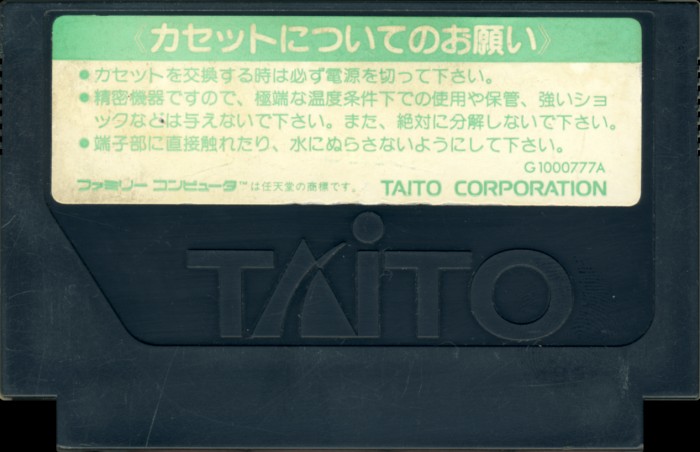

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Beveled Label / Logo 3 |
| Embossed Text | |
| Front Label ID | TFC-DD-5900 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

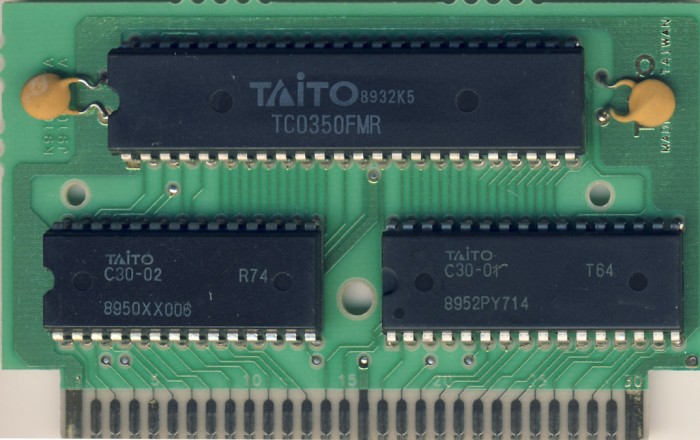

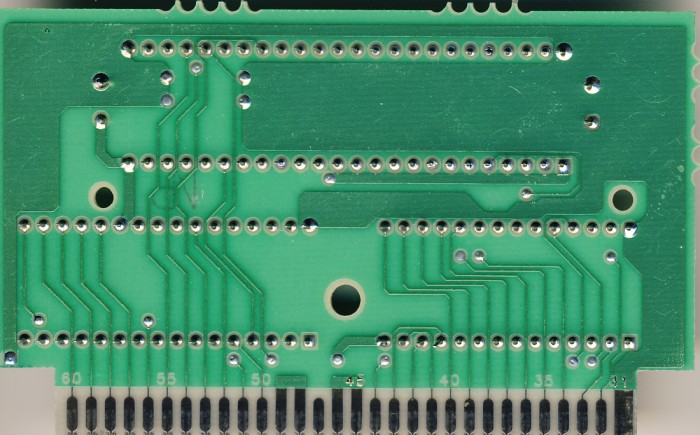

PCB Properties
| Name | J9100197A |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 8952 |
| Est First Run | December 1989 |
| PCB Class | TAITO-TC0350FMR |
| iNES Mapper | 33 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | TC0350FMR |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | C30-02 | 128 KB | 59CD0C31 | 1 |
| CHR0 | C30-01 | 256 KB | 59B17B81 | 1 |
| N/A | ROMs Combined | 384 KB | 7A497AE3 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8950 XX006 | 8950 | ||
| NEC | UPD23C2013 | Mask ROM 256 KB | DIP-32 | 8952 PY714 | 8952 | ||
| NEC | TC0350FMR | Taito TC0350FMR | DIP-48 | 8932 K5 | 8932 |
