Release Info
| Catalog ID | SHI-OS |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 25, 1989 |
| Publisher | Shinsei |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Grey |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SHI-OS |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

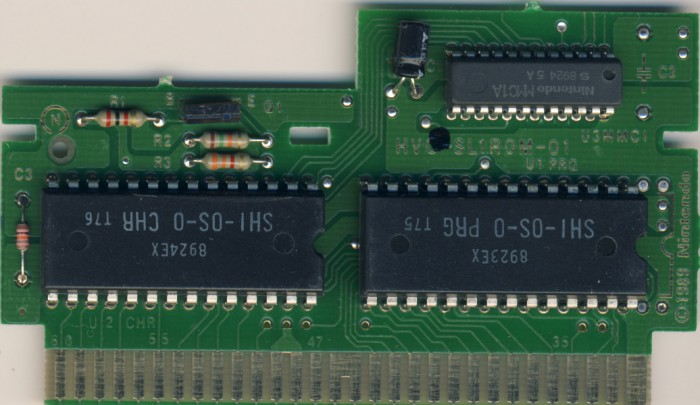

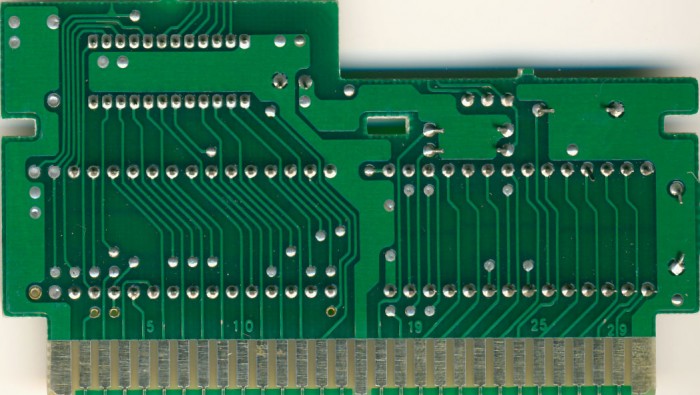

PCB Properties
| Name | HVC-SL1ROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8924 |
| Est First Run | June 1989 |
| PCB Class | HVC-SL1ROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SHI-OS-0 PRG | 128 KB | 335CFBA6 | 1 |
| CHR0 | SHI-OS-0 CHR | 128 KB | F0267441 | 1 |
| N/A | ROMs Combined | 256 KB | 264F26B1 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8923 EX | 8923 | ||
| NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8924 EX | 8924 | ||
| Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8924 5 A | 8924 |
