Release Info
| Catalog ID | BA-OEKA1 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | October 25, 1990 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Oeka Kids Tablet |

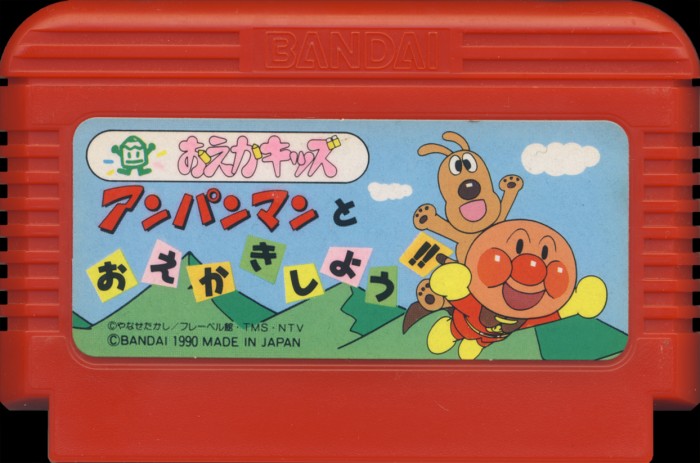

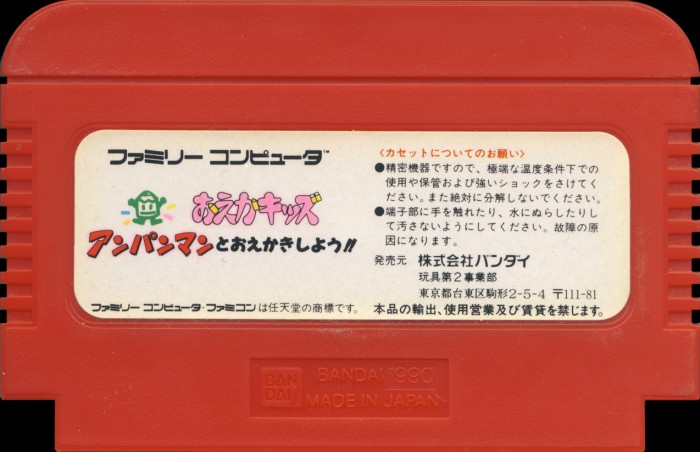

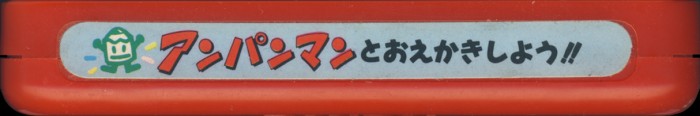

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Red |
| Form Factor | Small |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties
| Name | UNK-BANDAI-OEKAKIDS |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 9035 |
| Est First Run | September 1990 |
| PCB Class | BANDAI-74*161/02/74 |
| iNES Mapper | 96 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 32 KB |
| CIC Type | None |
| Hardware | 74xx02, 74xx161, 74xx74 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI'90 OEKAKIDS-1 | 128 KB | 9D048EA4 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 9034 E | 9034 | ||
| NEC | D43256AC | SRAM 32 KB | DIP-28 | 9012 AU017 | 9012 | ||
| Motorola | MC74HC161N | 74-161 Series | DIP-16 | 9011 JJAT | 9011 | ||
| Hitachi | HD74HC02P | 74-02 Series | DIP-14 | 0H2 5 | 9033 | ||
| Hitachi | HD74HC74P | 74-74 Series | DIP-14 | 0H4 5 | 9035 |
