Release Info
| Catalog ID | KOE-IU |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | August 29, 1991 |
| Publisher | Koei |
| Developer | Koei |
| Players | 2 |
| Peripherals | Famicom Controller |

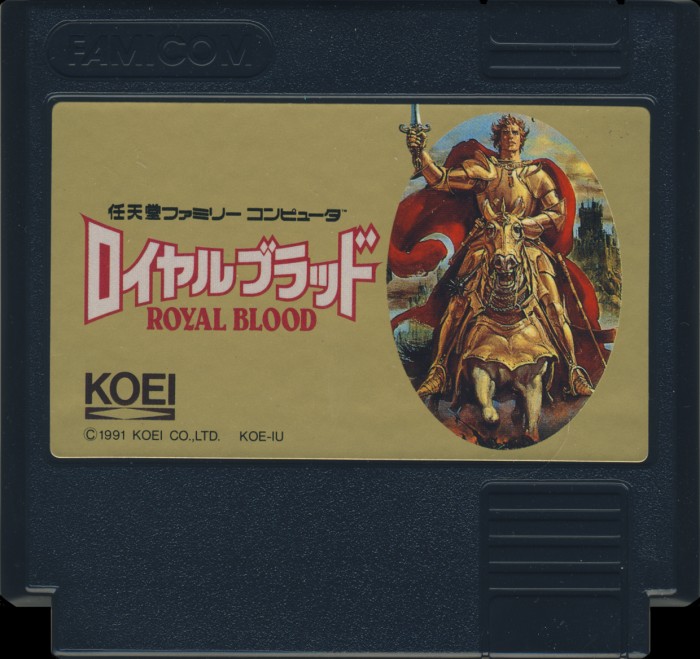

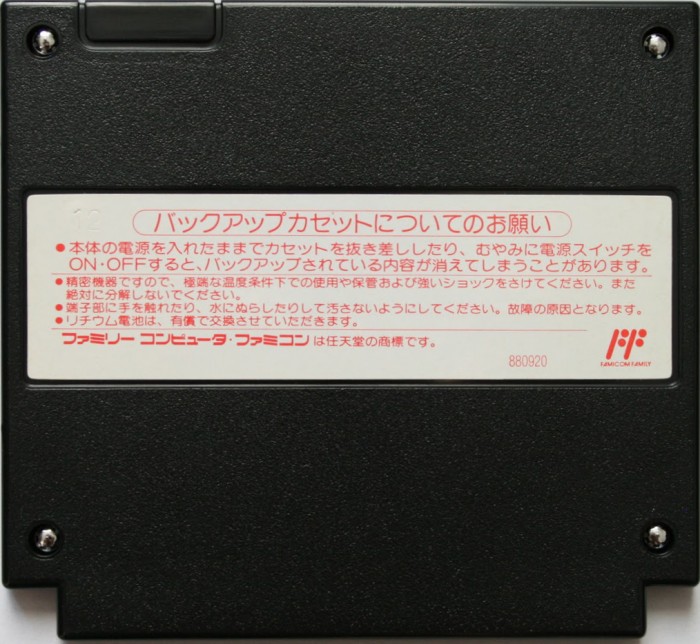

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Large w/ Famicom Logo |
| Embossed Text | |
| Front Label ID | KOE-IU |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

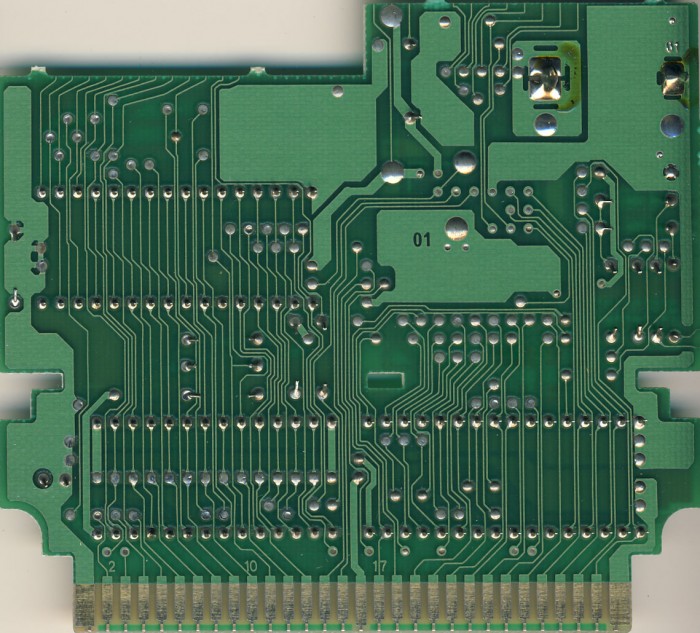

PCB Properties
| Name | HVC-EKROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9127 |
| Est First Run | July 1991 |
| PCB Class | HVC-EKROM |
| iNES Mapper | 5 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC5 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KOE-IU-0 PRG | 256 KB | 57F33F70 | 1 |
| CHR0 | KOE-IU-0 CHR | 256 KB | 44B22B3D | 1 |
| N/A | ROMs Combined | 512 KB | BC80FB52 | 1 |

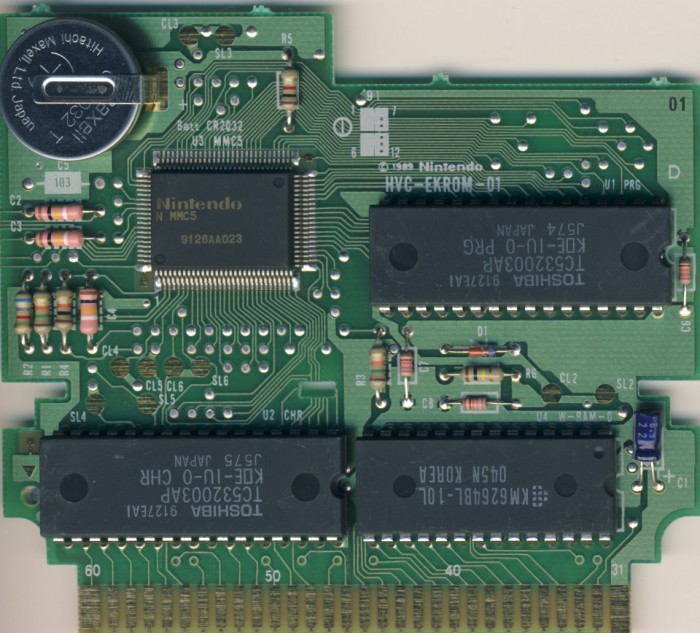

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Toshiba | TC532003AP J574 | Mask ROM 256 KB | DIP-32 | 9127 EAI | 9127 | |
| U2 CHR | Toshiba | TC532003AP J575 | Mask ROM 256 KB | DIP-32 | 9127 EAI | 9127 | |
| U3 MMC5 | NEC | MMC5 | Nintendo MMC5 | PQFP-100 | 9126 AA023 | 9126 | |
| U4 W-RAM-0 | Samsung | KM6264BL-10L | SRAM 8 KB | DIP-28 | 045 N | 9045 |
