Release Info
| Catalog ID | SUN-R16-4900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | October 4, 1985 |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 1 |
| Peripherals | Famicom Controller |

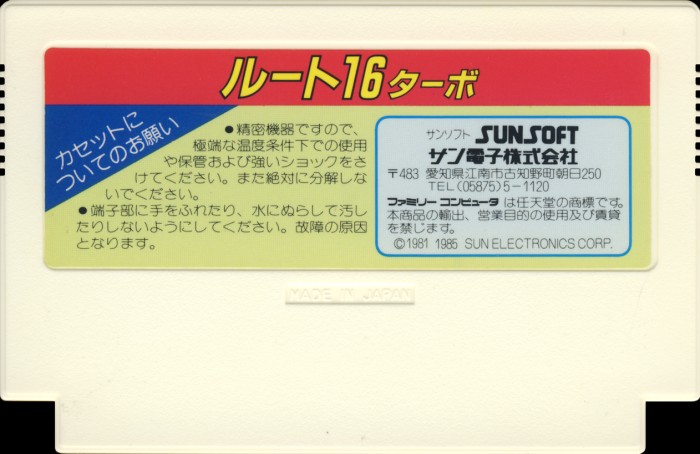

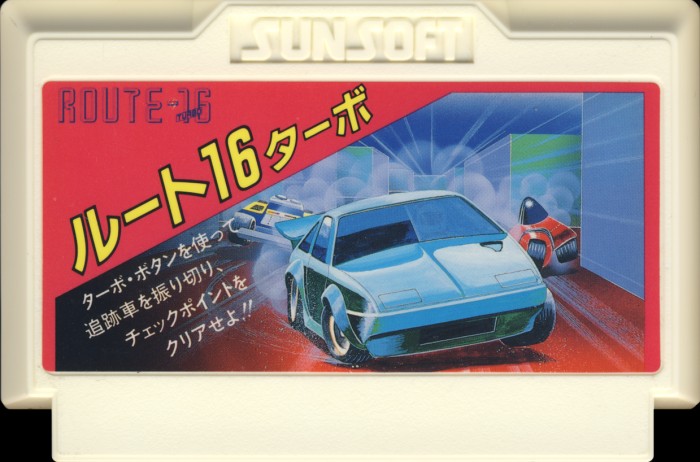

Cart Properties
| Cart Producer | Sunsoft |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

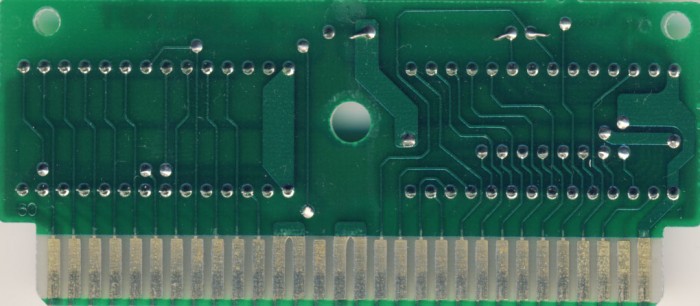

PCB Properties
| Name | UNK-SUNSOFT-R16 |
|---|---|
| PCB Producer | Sunsoft |
| Manufacturer | Not Specified |
| Mfg Range | 8532 - 8535 (5) |
| Est First Run | August 1985 |
| PCB Class | SUNSOFT-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | 76FFF9D5 | 5 |
| CHR0 | Not Present | 8 KB | 403315DD | 5 |
| N/A | ROMs Combined | 40 KB | 728BFA8D | 5 |

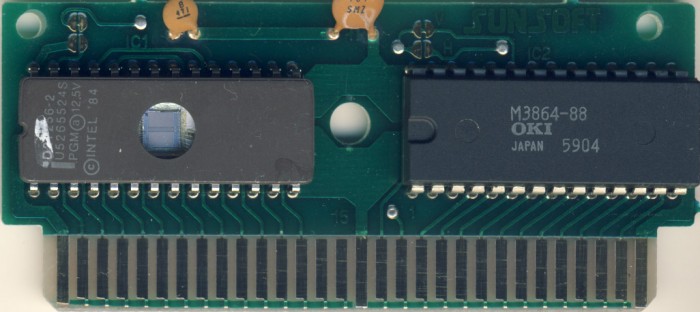

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | Intel | D27256-2 | UV EPROM 32 KB | DIP-28 | 526 U | 8526 | |
| IC2 | OKI | M3864 88 | Mask ROM 8 KB | DIP-28 | 59 04 | 8535 |
