Release Info
| Catalog ID | JF-41 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | March 5, 1993 |
| Publisher | Jaleco |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

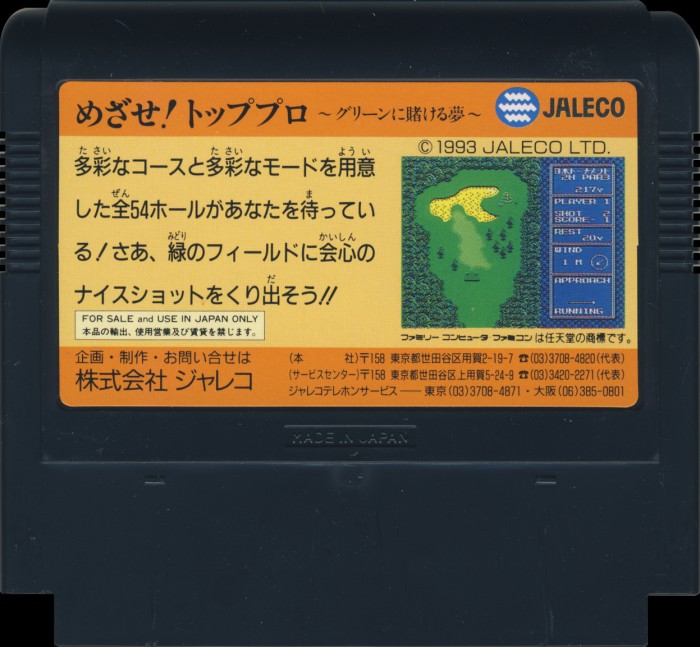

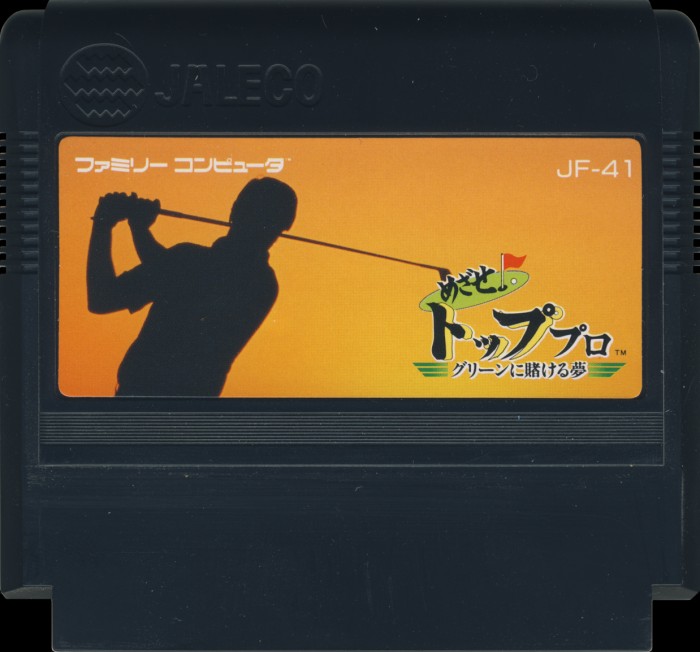

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Black |
| Form Factor | Large |
| Embossed Text | Made in Japan |
| Front Label ID | JF-41 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

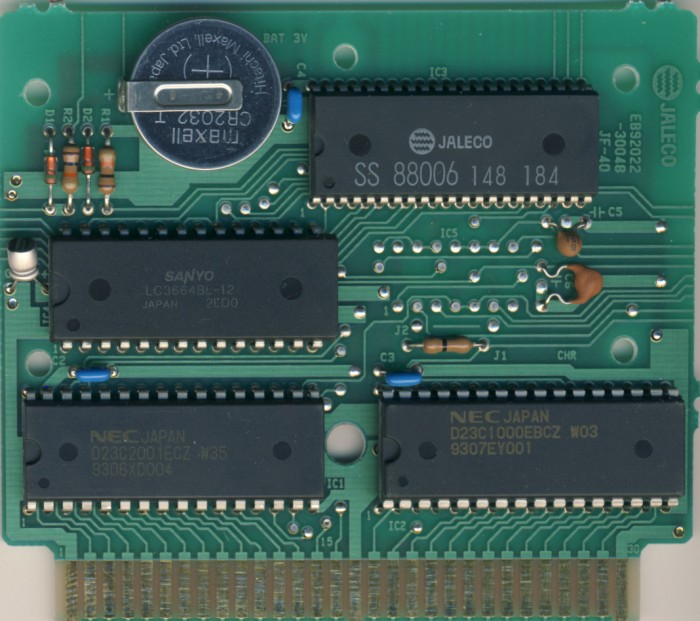

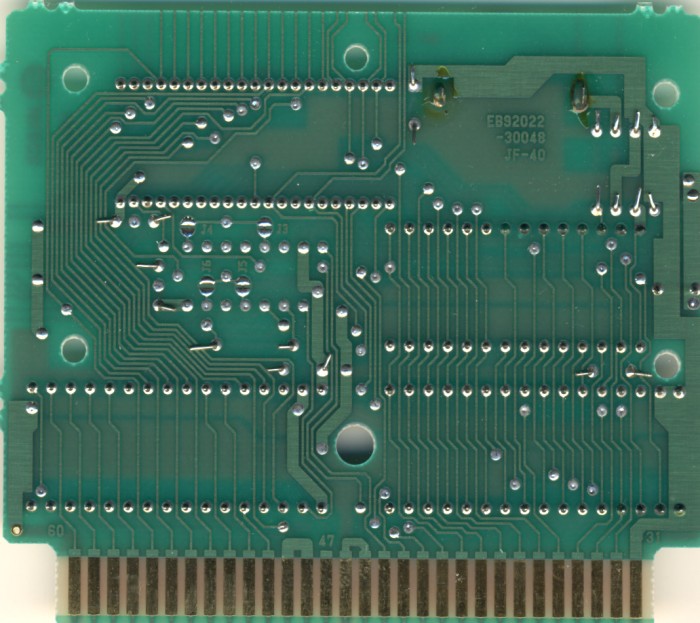

PCB Properties
| Name | JF-40 |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 9307 |
| Est First Run | February 1993 |
| PCB Class | JALECO-JF-40 |
| iNES Mapper | 18 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | SS88006 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 256 KB | 6701A19F | 1 |
| CHR0 | Not Present | 128 KB | 482E9EFF | 1 |
| N/A | ROMs Combined | 384 KB | 3691C120 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 PRG | NEC | D23C2001ECZ W35 | Mask ROM 256 KB | DIP-32 | 9306 XD004 | 9306 | |
| IC2 CHR | NEC | D23C1000EBCZ W03 | Mask ROM 128 KB | DIP-32 | 9307 EY001 | 9307 | |
| IC3 SS88006 | Rohm | SS 88006 | Jaleco SS88006 | DIP-42 | 148 184 | 9148 | |
| IC4 | Sanyo | LC3664BL-12 | SRAM 8 KB | DIP-28 | 2L D0 | 9249 |
