Release Info
| Catalog ID |
CDS-PA |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
December 18, 1987 |
| Publisher |
Coconuts |
| Developer |
Marionette |
| Players |
1 |
| Peripherals |
Famicom Controller |

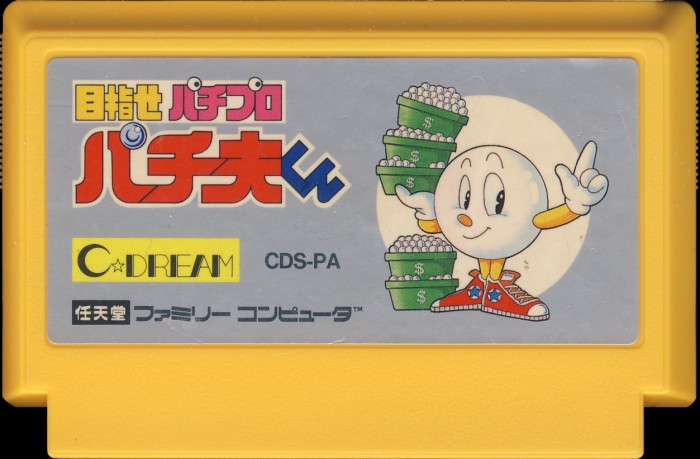

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Light Orange |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
CDS-PA |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
05 |
PCB Properties
| Name |
HVC-SGROM-02 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8822 |
| Est First Run |
June 1988 |
| PCB Class |
HVC-SGROM |
| iNES Mapper |
1 |
| Mirroring |
Mapper Ctrl |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
MMC1A |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
CDS-PA-0 PRG |
128 KB |
9C3E8FC0 |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
|
Sharp |
LH2310
8A
|
Mask ROM
128 KB
|
DIP-28 |
8814
E
|
8814 |
|
|
Sony |
CXK5864PN-15L
|
SRAM
8 KB
|
DIP-28 |
8F
78
|
8822 |
|
|
Sharp |
MMC1A
|
Nintendo MMC1
|
DIP-24 |
8814
5 A
|
8814 |
|
Additional Images
PCB Images
