Release Info
| Catalog ID | JF-28 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | June 29, 1990 |
| Publisher | Jaleco |
| Developer | |
| Players | 2 |
| Peripherals | Famicom Controller |

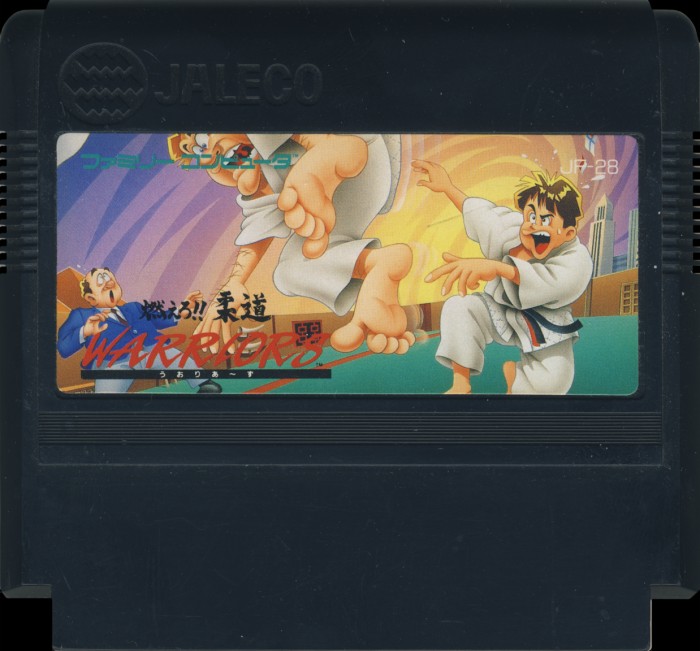

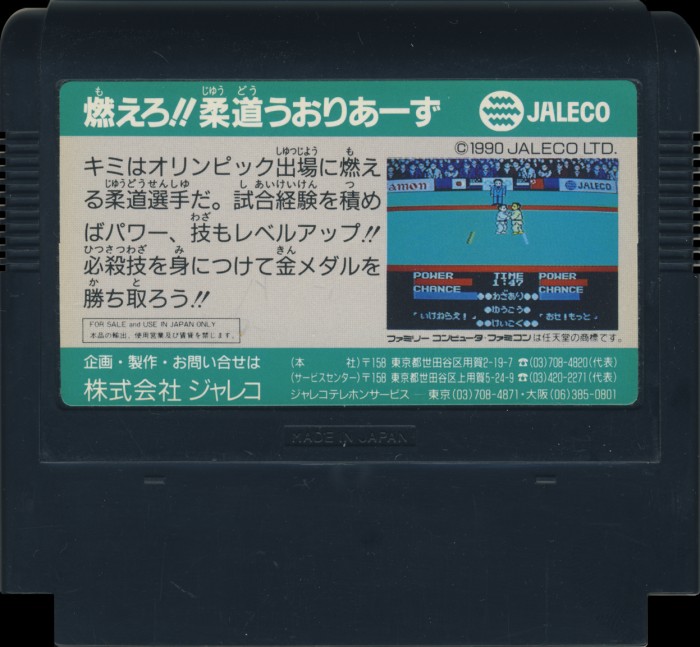

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Black |
| Form Factor | Large |
| Embossed Text | Made in Japan |
| Front Label ID | JF-28 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

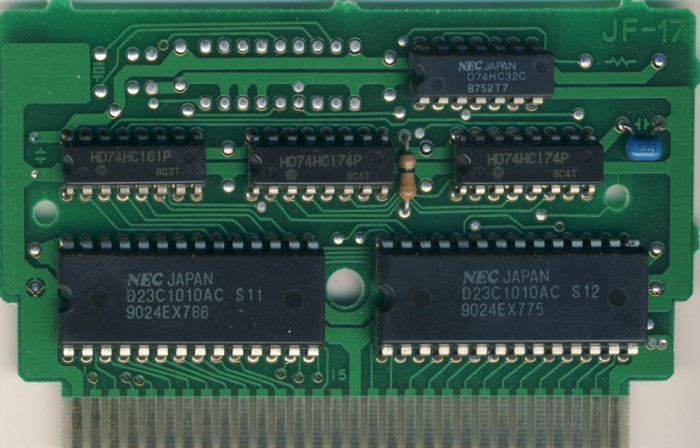

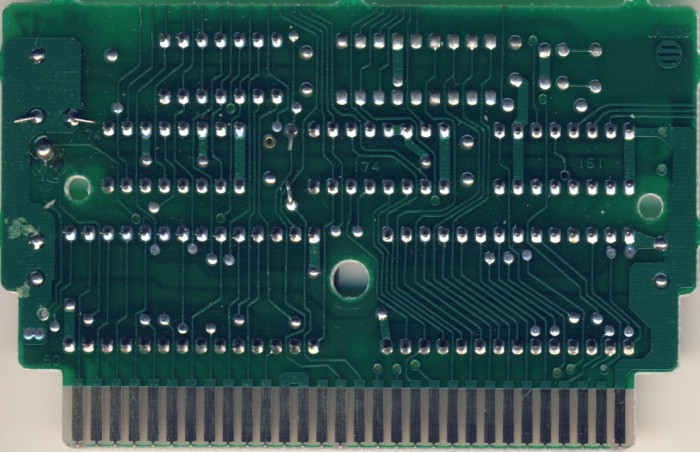

PCB Properties
| Name | JF-17 |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 9024 |
| Est First Run | June 1990 |
| PCB Class | JALECO-JF-17 |
| iNES Mapper | 72 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161, 74xx174, 74xx174, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | AA6E1A35 | 1 |
| CHR0 | Not Present | 128 KB | 6BD848F1 | 1 |
| N/A | ROMs Combined | 256 KB | 9EE83916 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | D23C1010AC S11 | Mask ROM 128 KB | DIP-28 | 9024 EX786 | 9024 | ||
| NEC | D23C1010AC S12 | Mask ROM 128 KB | DIP-28 | 9024 EX775 | 9024 | ||
| 161 | Hitachi | HD74HC161P | 74-161 Series | DIP-16 | 8G3 T | 8829 | |
| 174 | Hitachi | HD74HC174P | 74-174 Series | DIP-16 | 8C4 T | 8813 | |
| 174 | Hitachi | HD74HC174P | 74-174 Series | DIP-16 | 8C4 T | 8813 | |
| NEC | D74HC32C | 74-32 Series | DIP-14 | 8752 T7 | 8752 |
